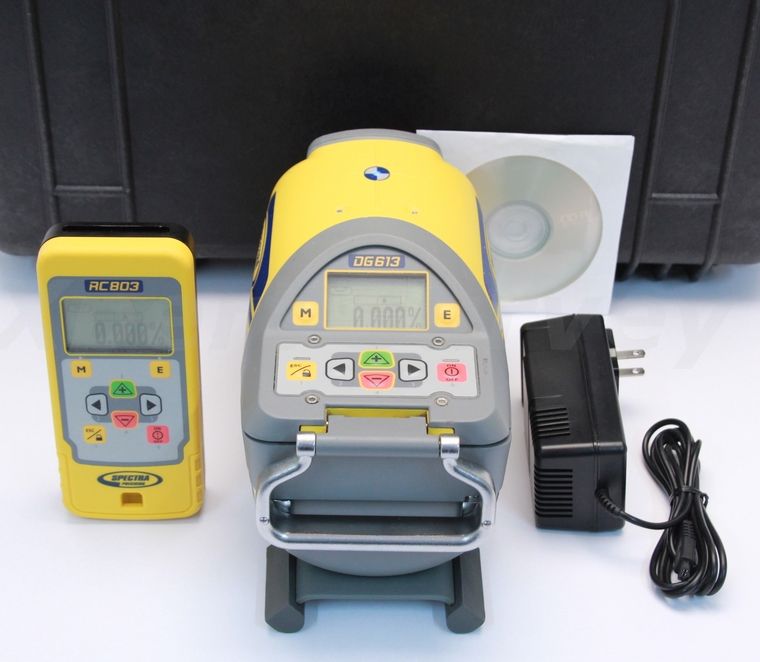

Spectra Trimble DG613 Dial Grade Pipe Laser
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Spectra Precision DG613 Dial Grade Pipe Laser [ID-L/T*]
* AC Adapter/Charger
* User Manual On CD-ROM
* Hard Carrying Case(G)
Designed to fit around tighter inverts, the Spectra Precision DG813, DG613 and DG613G deliver the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. The top of the range model, DG813, comes with a smart Spot Finder, which the laser can align to automatically and can also calculate the grade – great for checking previous work on a second day set-up.Simple to use, with the new menu driven user interface, the DG813 and DG613(G) help you improve efficiency and provide unprecedented performance and reliability. Working in the trenches just got easier with the new range of pipe lasers from Spectra Precision.
Specifications:
| PERFORMANCE SPECIFICATIONS | |
| Operating Range | Up to 150m(500ft) w/ radio/IR remote control |
| Grade Range | -15% to +40% |
| Self-Leveling Range | Complete grade range and full axis compensation |
| Line Range | 20° |
| Line Scan | Yes |
| Line Set/Check | Yes |
| Line Alert | Yes |
| Temperature Compensation | Yes |
| LASER CLASSIFICATION | |
| Laser output | Red diode laser 600 680 nm |
| Laser classification | 3A/3R |
| GENERAL SPECIFICATIONS | |
| Weight | 3.98 kg (6.61 lbs.) |
| Length | 25 cm (9.8 inches) |
| Diameter | 13.5 cm (5.3 inches) |
| Battery type and life | NiMH / 40 hours |
| Battery pack | Sealed (NiMH), 0-Ring Sealed Removable (Alkaline) |
| Operating temperature | -20° to 50° C (-4° to 122° F) |
| Storage temperature | -20° to 70° C (-4° to 158° F) |
| Waterproof | IP68 |
| Manufacturer | Spectra |
|---|
