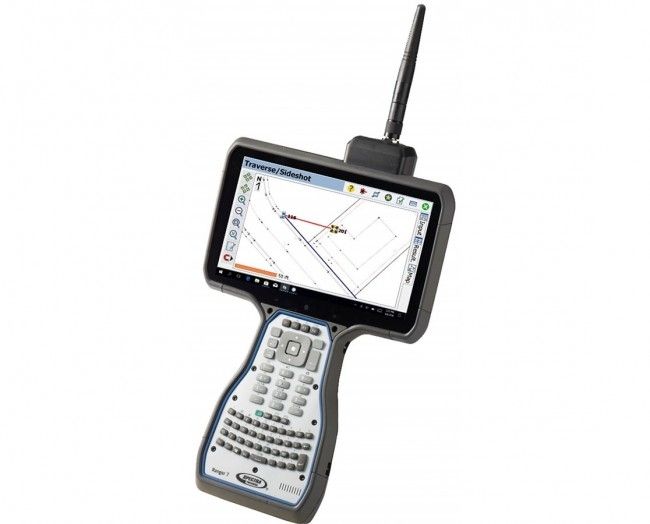

Spectra Ranger 7 2.4GHz Field Controller w/ Access
Spectra Ranger 7 Field Controller Data Collector
- Trimble Access Software
- 2.4 GHz Radio Module
$0.01
Availability:
Out of stock
SKU
XPDC77
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for
* Spectra Ranger 7 Field Controller Data Collector w/ Options.. [ID- -L/T*]
- Trimble Access Software
- 2.4 GHz Radio Module
* Stylus
* AC Adapter/Charger
* Power Cord
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On CD-ROM
* Carrying Case
Spectra Ranger 7 Data collector Field Controller
Welcome to the fourth generation Ranger data collector. Its all-new design is based on the experience gained over the last 18 years of demanding field operations. The guiding principles have never changed: productivity, reliability, and quality. A down day is simply not an option. The Ranger 7 continues the legacy of the Ranger data collector by focusing on what is important.
- Screen Size: It’s not just about showing a bigger map; it’s about seeing results and making decisions.
- Full Keyboard: It’s about getting that data input quickly and error free. The backlit QWERTY keyboard and full numeric keypad are designed for just that.
- Rugged and Reliable: A down day really isn’t an option. Few things are more damaging to schedules and profits than equipment that isn’t ready. The Ranger 7 is designed tough. It is up to your challenge.
- Enables Productivity: The screen, keyboard, toughness, solid pole bracket, hot-swappable batteries, and industry leading field software like Survey Pro, all combined with high quality Spectra Precision instruments means you get the most out of your money.
Features:
- 7“ multi-touch display Easier to see your data and operate
- Dual hot-swap batteries Continuous power
- Windows 10 Professional operating system OS for professionals
- Available with Survey Pro and Layout Pro software The right software for the job
Specifications:
| PHYSICAL SPECIFICATIONS | |
| Size: | 30 x 20.9 x 7.1 cm (11.8 x 8.2 x 2.8“) |
| Weight: | 1.42 kg (3.12 lb) |
| Housing: | Glass-fibre reinforced resin with integrated drop bumpers |
| ENVIRONMENTAL SPECIFICATIONS (Meet or exceed) |
|
| Operating temperature | –20 °C to 60 °C (-4 °F to 140 °F) MIL-STD-810G 501.5 Procedures II (operation) |
| Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) MIL-STD-810G 501.5 Procedures I (storage) |
| Humidity | 90%RH temp cycle –20 °C/60 °C (–4 °F/140 °F) MIL-STD-810G, Method 507.5, Procedure II |
| Sand & dust | IP6x: 8 hours of operation with blowing talcum powder (IEC-529) |
| Water | IPx8: Immersion, up to 1 m (3.2 ft) depth for 2 hours |
| Drop | 26 drops at room temperature from 1.22 m (4 ft) onto plywood over concrete MIL-STD- 810G, Method 516.6, Procedure IV |
| SECURITY | TPM (Trusted Platform Module) |
| CONFIGURATIONS | |
| EMPOWER module support: | 2 x module bays |
| Languages supported at first boot | Chinese (Simplified), English (US), French, German, Italian, Japanese, Korean, Portuguese (Brazilian), Spanish (Castilian region and Mexico) |
| CERTIFICATIONS | |
| Among others | FCC, NRTL, ICES, IC, NRTL, CE, CB, RCM, CCC |
| Countries | Certified in countries: USA, Canada, EU, Australia/New Zealand, South Africa, India, Malaysia, Tunisia, UAE, Thailand, Taiwan, Russia |
| Environmental | – EU RoHS, China RoHS, REACH, WEEE |
| COMPATIBLE SOFTWARE | |
| Survey Pro and Layout Pro | |
| ELECTRICAL SPECIFICATIONS | |
| Processor: | Intel Apollo Lake - N4200, 64-bit quad-core |
| Memory: | 8 GB RAM, LPDDR4 |
| Storage: | 64 GB eMMC |
| Expansion: | via microSDXC card up to 2 TB |
| Batteries: | – 2 x 3100 mAh (22.53 Wh) min. capacity/3150 mAh (22.90 Wh) nominal capacity; removable, hot swappable, charge LED indicator |
| Charging time: | Full-charge 3.5 hours, fast-charge (80 %) 1 3⁄4 hours |
| Battery life: | Medium usage approx. 5 hours, can range 4-7 hours (depending on display settings, connectivity, data processing, ambient temperature, etc.) |
| Power input: | 19V/5A charging |
| Notification LED: | Charging and power status |
| Display: | 17,78 cm (7-inch), 1280 x 800 landscape, 16:10, multi-point capacitive, 650+ nits sunlight readable |
| Keyboard | QWERTY or ABCD, with backlight, numeric key block, Fn keys (6 physical + 6 2nd function Fn keys) |
| Audio | Speaker and dual digital microphone array with noise reduction |
| External speaker/microphone | 3.5 mm mini-jack or wireless headset |
| I/O | User replacable module. Standard: Charger/ DC power-in, USB 3.1 Gen 1 type A host, serial RS232 DB-9 |
| USB: | USB 3.1 Gen 1 |
| WWAN | Worldwide LTE in regions where it is available, and compatible with 3G networks AT&T and Verizon certified. MicroSIM card |
| Wi-Fi: | 802.11 a/b/g/n, 2.4 GHz radio band |
| Bluetooth: | BT 2.1 + EDR, BT 4.1 |
| Camera | Rear camera: 8 MP autofocus with flash - Front camera: 2 MP fixed-focus |
| GNSS: | Integrated GNSS |
| Sensors | 3-axis accelerometer, magnetic sensor, ambient light sensor, proximity sensor |
| Manufacturer | Spectra |
|---|
