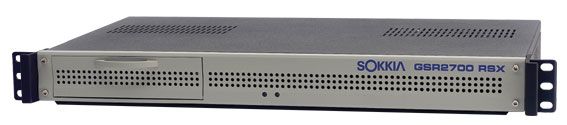

Sokkia GSR2700RSX GNSS Reference Station
SOKKIA’s GSR2700 RSX offers advanced reference station technology for the ultimate in surveying performance and efficiency. The system features a high-precision GNSS reference station offering GPS + GLONASS RTK corrections and raw data to multiple rover receivers for maximum satellite availability. It is compact, lightweight, and easy to set up in the home or office. It comes equipped with GSR Reference Station Software, giving you remote access to valuable GNSS data via the Internet twenty-four hours a day, seven days a week.

GSR2700 RSX Features:

• State-of-the-art, high-precision, multi-frequency GNSS receiver with advanced multipath rejection
• Windows® XP based PC with 120GB hard drive
• Includes rubber support mounts to accommodate a desktop setup.
• Compatible with a variety of SOKKIA GPS/GNSS antennas
• Built-in Ethernet port for easy connectivity
• 1.5 GHz processor speed ⁄ 1GB RAM
• Equipped with CD drive

Specifications:

Position Accuracy
Static	3.0 mm + 0.5 ppm (horizontal); 10.0 mm + 1 ppm (vertical)
Channels
14 x L1 and 14 x L2 (GPS), 12 x L1 and 12 x L2 (GLONASS), 2 SBAS
Time to First Fix
Cold Start	50 sec (typical)
Signal Reacquisition	0.5 sec L1 and 1.0 sec L2 (typical)
Data Rates	20 Hz
Physical
Weight	3.1 kg     6.8 lb
Dimensions (h x w x d)	4.4 cm x 48 cm x 25.4 cm    1.75 in x 19 in x 10 in
Environmental
Operating Temperature	0° C to +50° C +32° F to +122° F
Humidity	0-95% relative humidity non-condensing
Power
Supply	110–220 VAC Power (nominal)
Consumption	GNSS card and carrier board 1.95W (typical) Input 100-240 VAC 50/60Hz, Output 12VDC/5A
Ports
Computer	1 x RJ-45 LAN port (GB LAN), 1 x Serial port, 1 x VGA port, 4 x USB 2.0 ports, 1 x RCA port (SPDIF or TV out), 1 x S-Video port, 3 x Audio Jacks: line-out, line-in and mic-in (Horizontal, Smart 5.1 Support)
GPS	1 x Antenna (SMA), 1 x RS232, 1 x External Oscillator (SMA)
