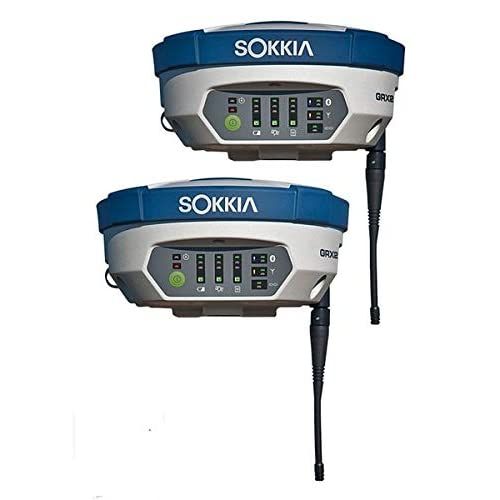

Sokkia GRX2 L1 L2 GNSS UHF 410-470 Mhz RTK Base & Rover Receiver Set

* Sokkia GRX2 GNSS Base w/ Options... [ID- -L/T*]
          - 410-470Mhz Digital UHF II Radio Module
* Sokkia GRX2 GNSS Rover Receiver w/ Options... [ID- -L/T*]
          - 410-470Mhz Digital UHF II Radio Module
* QTY. 2 Antenna's
* QTY. 2 Batteries
* Battery Charger w/ Power Cord
* Hard Carrying Case [G]

Sokia GRX2 45010-470 Mhz GNSS Base/ & Rover Receiver Set



Positioning made easy

This fully integrated dual-constellation RTK GNSS receiver brings a new level of versatility and flexibility into your precision applications. The GRX2 provides unmatched usability and versatility that’s sure to improve your performance.

And like all of our products, you can customize it to meet your needs and create your own workflows.

• Fully Scalable
• 226 Channels (GPS+Glonass+SBAS)
• Integrated UHF+Cellular+ Bluetooth®
• Voice Navigation
• Compact, Watertight, and Rugged
• RTK and Static survey operations

Fully Scalable Architecture
The GRX2 is affordable and scalable. You can start with it as a single frequency GPS only receiver and at any time add a radio or cellular modem for additional signal capability for GLONASS.

Multi-channel Support
Featuring 226 tracking channels with Universal Tracking Technology, the GRX2 has you covered. With programmable channels for tracking available signals, the GRX2 supports SBAS, QZSS, and QLL.

Triple Wireless Technologies
The three most commonly-used wireless technologies can be integrated into the GRX2 receiver. Digital UHF or FH915 SS modem (receiver/transmitter) for RTK base and rover, GSM/HSPA modem for network RTK, and MAGNET® Relay Bluetooth® modem for controller and other PCs.

Specifications
Tracking Capabillity
Number of Channels*1	226 channels with optimized satellite tracking technology
Tracking Signals
GPS	L1, L2, L2C
GLONASS	L1, L2
SBAS	L1 C/A WAAS/MSAS/EGNOS/GAGAN
QZSS	L1 C/A
Antenna	Integrated
Positioning Accuracy*2
Static/Fast Static	H: 3.0 mm + 0.4 ppm, V: 5.0 mm + 0.5 ppm
Precision Static* *	H: 3.0 mm + 0.1 ppm, V: 3.5 mm + 0.4 ppm
RTK (L1 + L2)	H: 5 mm + 0.5 ppm, V: 10 mm + 0.8 ppm
DGPS	< 0.5 m
User Interface
Operation	Single-button operation for power, receiver reset, memory initialization
Display panel	22 LED status indicators
Voice navigation	Multi-lingual voice messages for receiver status information
Data Management
Update/output rate*3	1 Hz, 5 Hz, 10 Hz, 20 Hz (10 Hz RTK Standard)
Communication Ports	RS-232C (4,800 to 115,200 bps)
Real Time Data Output	TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+
ASCII Output	NMEA 0183 version 2.x, 3.x and 4.x
Wireless Communication
Bluetooth® modem	V2.1 + EDR, Class 2, 115,200 bps*4
Digital UHF II modem*4	Internal, receiver (RX) and transmitter (TX), 410 to 470 MHz
Cellular	Integrated HSPA+/CDMA
FH915 spread spectrum radio	N/A
Environmental
Dust/Water Protection	IP67 (IEC 60529:2001) at closing all connector caps. Protected against temporary immersion up to 1 m (3.3 ft.) depth.
Shock	2 m (6.56 ft.) pole drop
Operating Temperature	GRX2 receiver: -40 to 65°C (-40 to 149°F) BDC70 battery: -20 to 65°C (-4 to 149°F /GSM modems: -20 to 55°C (-4 to 131°F)
Storage Temperature	-45 to 70°C (-49 to 158°F)
Humidity	100%, condensing100%, condensing
Physical
Enclosure	Magnesium alloy housing
Size (w x h)	184 x 95 mm (7.24 x 3.74 in.)
Weight (GRX2 receiver / BDC70 battery)	1.0 kg (2.20 lb.) / 195 g (6.9 oz.)
Power Supply
Standard battery BDC70	Detachable, Li-ion battery, 7.2V, 5240 mAh
Operating time at 20°C (68°F)	>7.5 hours in static mode with Bluetooth® connection
Charger CDC68	Recharging time: Approx. 4 hours at 25°C (77°F)
External power	6.7 to 18V DC
** Under nominal observing conditions and strict processing methods, including use of dual frequency GPS, precise ephemerides, calm ionospheric conditions, approved antenna calibration, unobstructed visibility above 10 degrees and an observation duration of at least 3 hours (dependent on baseline length). *1 Number of channels and tracked signals vary according to receiver configurations. *2 Accuracy depends on the number of satellites used, obstructions, satellite geometry (DOP), occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality. *3 1 Hz standard. Higher rates available as options. *4 Internal “FH915 modem” or “FH915+Cellular modem” available as factory options. Bluetooth® Class 1 when used with a Class 1 field controller. *5 Use with an appropriate AC power cable. *6 Under nominal observing conditions and strict processing methods, including use of dual frequency GPS, precise ephemerides, calm ionospheric conditions, approved antenna calibration, unobstructed visibility above 10 degrees and an observation duration of at least 3 hours (dependent on baseline length). - Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sokkia is under license. Other trademarks and trade names are those of their respective owners. - Designs and specifications are subject to change without notice. - Product colors in this brochure may vary slightly from those of the actual products owing to limitations of the printing process.
