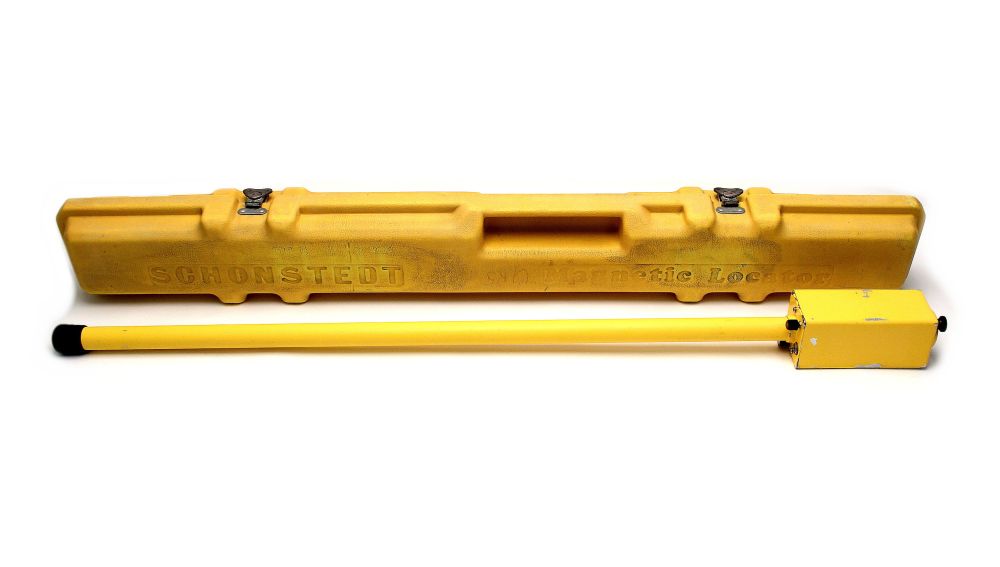

Schonstedt GA-52B Survey Magnetic Locator Metal Detector
The GA-52B Locator detects the magnetic field of iron and steel objects, with unmatched sensitivity.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Schonstedt GA-52B Survey Magnetic Locator Metal Detector [ID- X3731-L/T*]
* Carrying Case
Schonstedt GA-52B Spec TableSchonstedt GA-52B Survey Magnetic Locator
The Model GA-52B Magnetic Locator detects the magnetic field of a ferromagnetic object. lt responds to the difference in magnetic field between two sensors spaced about 20 inches apart. The response consists of a change in the frequency of a signal that is emitted by a loudspeaker. The figure below illustrates an application of the locator in which it is used to detect an iron marker for a property corner. In the illustration, the magnetic field of the iron marker is stronger at sensor A than it is at sensor B. As a result, the f requency of the signal on the loudspeaker is higher than the idling frequency,40Hz, which exists when the field is the same at both sensors.
| Specifications | |
| Input Power: | Supplied by four Gcell batteries (1-112 V each). |
| Battery Life: | 50 hours (lntermittent usage.) |
| Output: | Approximate 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity. |
| Weight: | Approximately 3 lbs. (1.36 kg.). |
| Operating Temperature: | 0 o F to i2O"F (-1 8 "C to 49 .C) |
| Overall Length: | 42-5116 in. (107.4 cm.) |
| Waterproof Length: | 3 4-i t2 in. (87.6 cm.) |
| Nominal Sensor Spacing: | 20 in. (50.8 cm.) |
| Construction: | Rugged, all solid state. |
