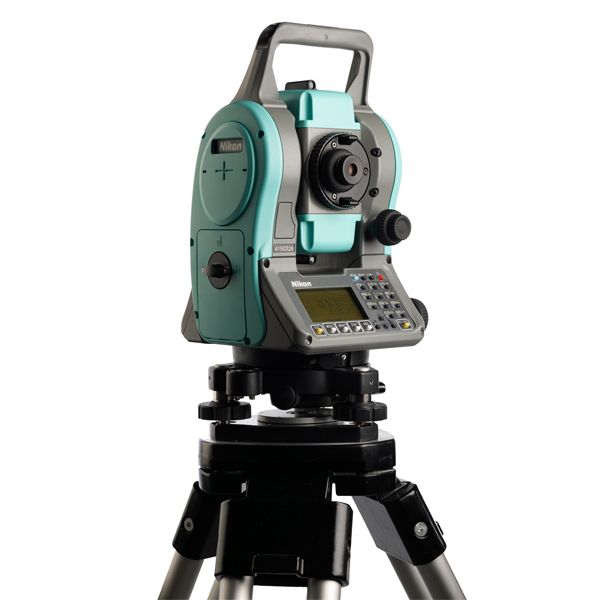

Nikon Nivo 2.M Prism / Reflectorless Total Station
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Nikon Nivo 2.M 2" Reflectorless Total Station [ID- L/T*]
* Li-ION Battery Charger
* Battery Pack
* Power Cord
* User Manual On CD-ROM
* Hard Carrying Case w/ Strap
Nikon Nivo 2.M Total Station
Nikon's next generation total station is Nivo and it is available in two exciting lines: the Nivo C Series and Nivo M Series. Both of the Nivo series are the absolute leaders for go anywhere measurement tools. Compact in size and lightweight, they are convenient to carry over long distances. All Nivo models are supported with legendary Nikon high clarity optics, allowing clearer images in bright and low light conditions, making measurements easy and reducing eye stress.
The fast, long range EDM measures in both prism and reflectorless modes. Measure precisely to objects up to 500 m away without the need for a prism (For Objects with High Reflectivity).
Nikon has combined simplicity and quality together in perfect harmony to produce the Nikon M Series. These compact and efficient products use a field-proven Nikon interface and field software that is quick to learn and easy-to-use. Supporting both prism-based and reflectorless technologies, you can be assured of accurate repeatable measurements all day long to any point.
The distance measurements are fast and flexible with the Nivo M Series. Use the MSR1 & MSR2 keys to separately configure different prism or reflectorless measurement parameters, eliminating time switching between measurement modes. Nivo M Series field software highlights include:
- A complete set of CoGo functions
- Simple data management of files
- Quick-coding for convenient one-button data collection of point features and your raw target data.
Features:
- High quality Nikon optics
- Intuitive powerful software
- Fast, accurate EDM
- Prism and reflectorless measurements
- Easy-to-use keypad
- Hot swappable batteries
- Compact, rugged, and lightweight
- Cable-free Bluetooth®
- Optional laser plummet
Specifications:
| DISTANCE MEASUREMENT | |||
| Range with Nikon specified prisms (Good conditions) With reflector sheet 5 cm x 5 cm ( 2 in x 2 in) |
|||
| Nivo2.M | 1.5 m to 270 m (4.9 ft to 886 ft) | ||
| With single prism 6.25 cm (2.5 in) | |||
| Nivo2.M | 1.5 m to 3,000 m (4.9 ft to 9,843 ft) | ||
| Range reflectorless mode | |||
| Nivo2.M | Good | Normal | Difficult |
| KGC (18%) | 350 m (1,148 ft) | 250 m (820 ft) | 200 m (656 ft) |
| KGC (90%) | 500 m (1,640 ft) | 400 m (1,312 ft) | 250 m (820 ft) |
| Shortest possible range | 1.5m (4.9 ft) | ||
| Accuracy (Precise mode) ISO17123-4 |
|||
| Prism | ±(2+2 ppm × D) mm | ||
| Reflectorless | ±(3+2 ppm x D) mm | ||
| Measuring interval | |||
| Prism mode | Precise mode | Normal mode | |
| Nivo2.M | 1.6 s | 0.8 s | |
| Reflectorless mode | |||
| Nivo2.M | 2.1 s | 1.2 s | |
| Least count | 1 mm (0.002 ft) | 10 mm (0.02 ft) | |
| ANGLE MEASUREMENT | |||
| ISO 17123-3 accuracy (horizontal and vertical) | 2"/0.6 mgon Nivo2.M | ||
| Reading system | Absolute encoder | ||
| Circle diameter | 62 mm (2.4 in) | ||
| Horizontal/Vertical angle | Diametrical Nivo2.M | ||
| Minimum increment | Degree: 1/5/10" Gon: 0.2/1/2 mgon MIL6400: 0.005/0.02/0.05 mil |
||
| TELESCOPE | |||
| Tube length | 125 mm (4.9 in) | ||
| Image | Erect | ||
| Magnification | 30× (18x/36x with optional eyepieces) | ||
| Nivo2.M Effective diameter of objective | 40 mm (1.6 in) | ||
| Nivo2.M EDM diameter | 45 mm (1.8 in) | ||
| Field of view | 1°20' | ||
| Resolving power | 3" | ||
| Minimum focusing distance | 1.5 m (4.9 ft) | ||
| Laser Pointer | Coaxial Red Light | ||
| TILT SENSOR | |||
| Type | Dual-axis | ||
| Method | Liquid-electric detection | ||
| Compensation range | ±3.5' | ||
| COMMUNICATIONS | |||
| Communication ports | 1 x serial (RS-232C) | ||
| Wireless communications | integrated Bluetooth | ||
| POWER | |||
| Internal Li-ion battery (x2) | |||
| Output voltage | 3.8 V DC | ||
| Operating time Nivo2.M |
approx. 19 hours (continuous distance/angle measurement) approx. 57 hours (distance/angle measurement every 30 seconds) approx. 62 hours (continuous angle measurement) |
||
| Charging time Full charge |
4 hours | ||
| GENERAL SPECIFICATIONS | |||
| Level vials | |||
| Sensitivity of circular level vial | 10'/2 mm | ||
| Optical plummet | |||
| Image | Erect | ||
| Magnification | 3× | ||
| Field of view | 5° | ||
| Focusing range | 0.5 m (1.6 ft) to ∞ | ||
| Display face 1 | backlit, graphic LCD (128x64 pixel) | ||
| Display face 2 | backlit, graphic LCD (128x64 pixel) | ||
| Laser plummet (optional) | 4 levels | ||
| Point memory | 10,000 records | ||
| Dimensions (W x D x H) | 149 mm x 145 mm x 306 mm (5.8 in x 5.7 in x 12.0 in) |
||
| Weight (approx.) Nivo2.M Main unit (without batteries) |
3.8 kg (8.4 lb) | ||
| Battery | 0.1 kg (0.2 lb) | ||
| ENVIRONMENTAL | |||
| Operating temperature range | –20 °C to +50 °C (–4 °F to +122 °F) | ||
| Storage temperature range | –25 °C to +60 °C (–13°F to +140 °F) | ||
| Atmospheric correction | |||
| Temperature range | –40 °C to +60 °C (–40 °F to +140 °F) | ||
| Barometric pressure | 400 mmHg to 999 mmHg/533 hPa to 1,332 hPa/15.8 inHg to 39.3 inHg |
||
| Dust and water protection | IP66 | ||
| Manufacturer | Nikon |
|---|
