Leica Viva TS16 Total Station

Leica Viva TS16 Total Station

Leica TS16 P 3" R500 Reflectorless Robotic Total Station

Leica TS16 P 3" R500 Robotic Total Station
$0.01
Availability: Out of stock
SKU
XPTS103

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

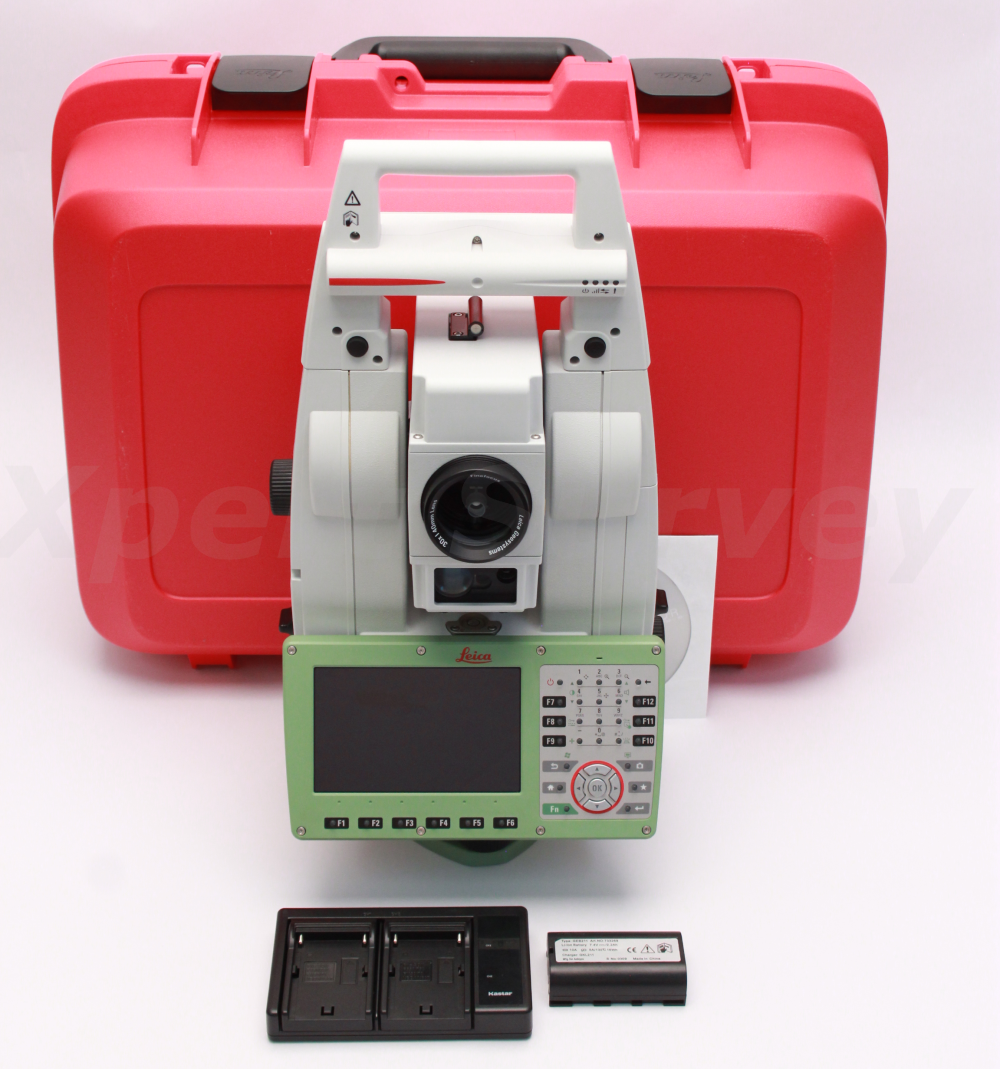

* Leica TS16 P 3" R500 Robotic Total Station [ID- -L/T*]
* Battery Charger
* Battery Pack
* Carrying Case

Leica TS16 P 3" R500 Imaging Total Station



Engaging software

The Leica Viva TS16 total station comes with the revolutionary Captivate software, turning complex data into the most realistic and workable 3D models. With easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions. Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.



Infinitely bridging the field to the office

While Leica Captivate captures and models data in the field, Leica Infinity processes the information back in the office. A smooth data transfer ensures the project stays on track. Leica Captivate and Leica Infinity work in conjunction to join previous survey data and edit projects faster and more efficiently.



Customer care is only a click away

Through Active Customer Care (ACC), a global network of experienced professionals is only a click away to expertly guide you through any problem. Eliminate delays with superior technical service, finish jobs faster with excellent consultancy support, and avoid costly site revisits with online service to send and receive data directly from the field. Control your costs with a tailored Customer Care Package, giving you peace of mind you’re covered anywhere, anytime.



Specifications:


ANGULAR MEASUREMENT
Accuracy 1 Hz and VAbsolute, continuous, diametrical: 3’’ (1 mgon)
DISTANCE MEASUREMENT
RangePrism (GPR1, GPH1P) Non-Prism / Any surface: R500: 1.5m to >500m
Accuracy / Measurement timeSingle (prism) : 1mm + 1.5ppm / typically 2.4s
Single (any surface) : 2mm + 2ppm / typically 3s
Laser dot size8mm x 20mm
Measurement technologyCoaxial, visible red laser
IMAGING
Overview cameraSensor: 5 megapixel CMOS sensor
Field of view: 19.4°
Frame rate: Up to 20 frames per second
AUTOMATIC AIMING - ATRplus
Target aiming range / Target locking rangeCircular prism (GPR1, GPH1P): 1500m / 1000m
360° prism (GRZ4, GRZ122): 1000m / 1000m
Accuracy / Measurement timeATRplus angle accuracy Hz, V: 3’’ (1 mgon)
POWERSEARCH
Range / Search time360° prism (GRZ4, GRZ122) 300m / typically 5s
GUIDE LIGHT (EGL)
Working range / Accuracy5–150m / typically 5cm @ 100m
GENERAL
Field softwareLeica Captivate with apps
Display and keyboard37 keys, illumination
5“ (inch), WVGA, colour, touch, face I standard / face II optional
ProcessorTI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
Operating system – Windows EC7
Power managementExchangeable Lithium-Ion battery
Operating time 5–8 h
Data storageInternal memory: 2 GB
Memory card: SD card 1 GB or 8 GB
InterfacesRS232, USB, Bluetooth®, WLAN
WeightTotal station including battery
5.3 - 6kg
Environmental specificationWorking temperature range Dust / Water (IEC 60529) / Humidity
–20°C to +50°C IP55 / 95%, non-condensing





More Information
Manufacturer Leica
