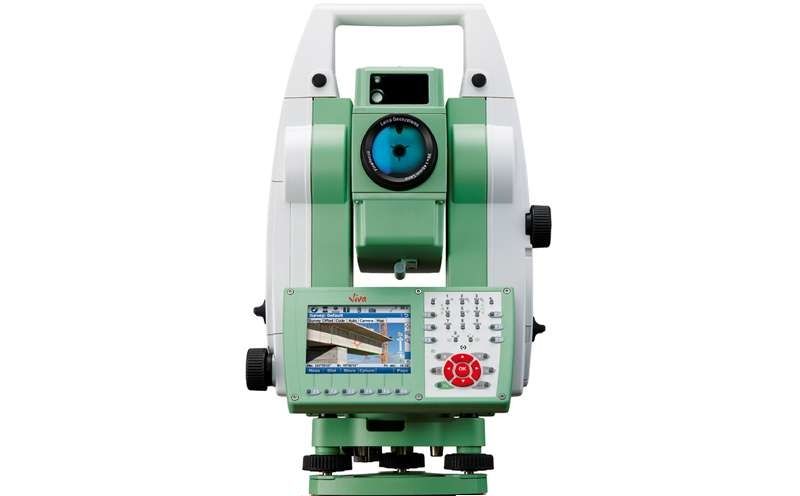

Leica TS15 P 5" R400 Robotic Imaging Total Station
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
|
* Leica TS15 P 5" R400 Robotic Imaging Total Station (BC# -L/T*) |
Leica TS15 Robotic Imaging Total Station
The Leica TS15 P 5″ R400 is a motorized total station in the Leica Viva surveying range. It combines electronic angle and distance measurements to determine coordinates and elevations for land surveying, engineering, and construction projects.
The 5″ designation identifies its 5-arc-second angular accuracy. Surveyors use its measurements to map terrain, establish control points, check alignments, and position planned construction features on the ground.
Its R400 reflectorless system measures distances up to 400 meters to suitable surfaces under specified conditions. This allows operators to measure building faces and other locations where placing a prism is difficult. Prism measurement supports longer distances.
The TS15 P includes automatic target aiming, prism tracking, and PowerSearch to help locate a prism. With a compatible field controller and radio connection, these functions support one-person surveying from the prism pole.
A color touchscreen, illuminated keyboard, internal storage, and data interfaces support field operation and transferring measurements. Its rechargeable battery and IP55 protection suit outdoor work. Together, these features help crews collect survey information and perform construction layout efficiently.
Features:
- 5-arc-second angular accuracy for surveying and construction layout.
- R400 reflectorless measurement up to 400 meters under specified conditions.
- Prism measurement range up to 3,500 meters with a standard GPR1 prism.
- Prism distance accuracy of ±(1 mm + 1.5 ppm) in standard mode.
- PowerSearch to quickly locate a prism.
- Automatic Target Recognition (ATR) for precise prism aiming.
- Prism tracking to follow a moving target.
- Motorized horizontal and vertical rotation.
- One-person surveying capability with a compatible controller and radio connection.
- 30× telescope magnification.
- Color touchscreen and illuminated keypad.
- Four-axis compensation to support accurate measurements.
- 1 GB internal memory, plus SD card and USB storage support.
- Bluetooth, USB, and RS-232 connections.
- Laser plummet for centering over a survey point.
- Electronic guide light to assist with stakeout.
- Rechargeable lithium-ion battery and IP55 dust and water protection
| Specification | Leica TS15 P 5″ R400 |
|---|---|
| Instrument type | Motorized robotic total station |
| Angular accuracy | 5″ |
| Angular display resolution | 0.1″ |
| Compensator | Four-axis compensation |
| Reflectorless range | Up to 400 m under specified conditions |
| Reflectorless accuracy | ±(2 mm + 2 ppm) |
| Reflectorless measurement time | Typically 3 seconds |
| Standard GPR1 prism range | Up to 3,500 m |
| Prism accuracy, standard mode | ±(1 mm + 1.5 ppm) |
| Prism measurement time, standard mode | Typically 2.4 seconds |
| Prism accuracy, fast mode | ±(2 mm + 1.5 ppm) |
| Prism measurement time, fast mode | Typically 0.8 seconds |
| Automatic target aiming | ATR |
| Moving-prism tracking | Supported |
| PowerSearch | Included |
| PowerSearch range, GPR1 prism | Up to 300 m |
| Telescope magnification | 30× |
| Telescope focusing range | 1.7 m to infinity |
| Display | VGA color touchscreen, 640 × 480 pixels |
| Keyboard | 36 illuminated keys |
| Internal storage | 1 GB |
| Removable storage | SD card and USB stick |
| Communication interfaces | RS-232, Bluetooth, USB mini-AB OTG |
| Centering system | Laser plummet |
| Guide light | Electronic Guide Light (EGL) |
| Battery | Rechargeable lithium-ion GEB221 |
| Battery operating time | Approximately 5–8 hours, depending on use |
| Protection rating | IP55 |
