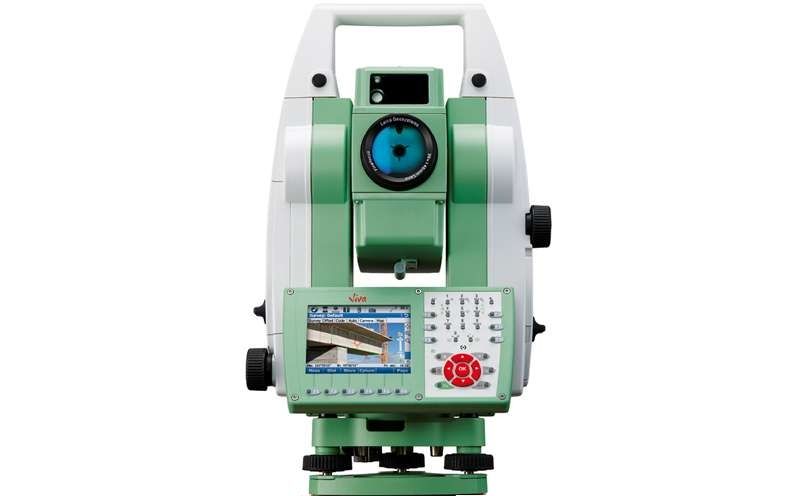

Leica TS15 P 3" R400 Robotic Imaging Total Station
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Leica TS15 P 3" R400 Robotic Imaging Total Station [ID- -L/T*]
* Battery Pack
* Carrying Case
Leica TS15 Robotic Total Station
Best-in-class Imaging
Optimize your productivity with exact photo documentation of site conditions. With live streaming of the total station view, you always know what the total station sees. Measure all points without returning to the total station.
- Image Notes – Capture an image, screenshot or template, sketch on it and link it to any object in the database.
- Image Assisted Surveying – Simply tap on the display and the total station will turn and measure the desired target.
Best-in-class One-Person-Surveying
TS15 uses years of experience to optimally combine the world’s best total station sensors: angles, distances, drives and the patented PowerSearch target recognition camera.
- Search – the unique PowerSearch fi nds your prism within seconds
- Lock - stays locked onto your prism in the most demanding environments
- Measure - PinPoint EDM seamlessly harmonizes with precise angle sensors to complete the measurement process
GNSS Add-on
Add full GNSS functionality to your TS15 whenever you want and combine TPS and GNSS in the most efficient way
- Use SmartStation for TPS setup without the need of control points, traverses and resections
- Use SmartPole to save time with setup ‘On-the-fl y’ and measure parallel with TPS and GNSS for double productivity
Specifications:
| Angular Measurement | |
| Accuracy Hz, V | 3’’ (1 mgon) |
| Display resolution | 0.1’’ (0.1 mgon) |
| Method | absolute, continuous, diametrical |
| Compensation | Quadruple axis compensation |
| Compensator setting accuracy | 1.5’’ (0.5 mgon) |
| Distance Measurement | |
| Reflective tape (60 mm x 60 mm) | 250 m (800 ft) |
| Accuracy / Measurement Time | |
| Standard | 1 mm + 1.5 ppm / typ. 2.4 s |
| Fast | 3 mm + 1.5 ppm / typ. 0.8 s |
| Continuous | 3 mm + 1.5 ppm / typ. <0.15 s |
| Distance Measurement (Any Surface) | |
| Range | 400 m (1310 ft) |
| Accuracy / Measurement Time | 2 mm + 2 ppm / typ. 3 s |
| Distance Measurement (Long-range) | |
| Long-range | >10000 m (>32800 ft) |
| Accuracy / Measurement Time | Long-range: 5 mm + 2 ppm / typ. 2.5 s |
| General | |
| Display resolution | 0.1 mm |
| Shortest measurable distance | 1.5 m |
| Method | System analyzer based on phase shift measurement (coaxial, visible red laser) |
| Laser dot size (Non-Prism) | At 30 m: 7 mm x 10 mm, at 50 m: 8 mm x 20 mm |
| Operating system & Processor | |
| Operating System | Windows CE 6.0 |
| Processor | Freescale i.MX31 533 MHz ARM Core |
| Telescope | |
| Magnification | 30 x |
| Free objective aperture | 40 mm |
| Field of view | 1° 30’ (1.66 gon) / 2.7 m at 100 m |
| Focusing range | 1.7 m to infinity |
| Keyboard and Display | |
| Display | 640 x 480 pixel (VGA) color TFT with LED backlight and touch screen |
| Keyboard | 36 keys (12 function keys, 12 alphanumeric keys), illumination |
| Position | face I standard / face II optional |
| Memory, Ports & Communication | |
| Internal memory / Memory devices | 1 GB (nonvolatile NAND Flash) / SD card, USB stick |
| Interfaces | RS232, Bluetooth® Wireless-Technology, USB mini AB OTG |
| Operation | |
| Sensitivity of Circular level | 6’ / 2 mm |
| Centering accuracy of Laser plummet | 1.5 mm at 1.5 m |
| Number of drives | 1 horizontal / 1 vertical |
| Power Management | |
| Internal Battery | Lithium Ion |
| Operating Time | 5 – 8 h (GEB221) |
| Voltage / Capacity | 7.4 V / 4.4 Ah |
| Weight and Dimensions | |
| Weight of Total Station | 4.9 – 5.5 kg / 0.2 kg / 0.8 kg |
| Height / Width / Length | 345 mm / 226 mm / 203 mm |
| Environmental specifications | |
| Working / Storage temperature range | -20° C to +50° C / -40° C to +70° C |
| Dust / water (IEC 60529) / Humidity | IP55 / 95%, non-condensing |
| Manufacturer | Leica |
|---|
