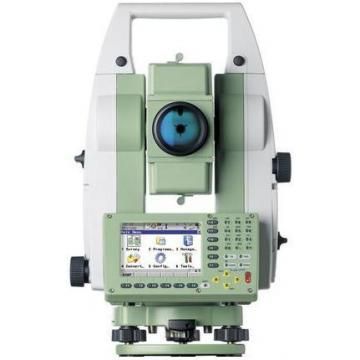

Leica TCRP1201 Total Station TPS1200 Series
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
|
* Leica TCRP1201 Total Station TPS1200 Series (BC# -L/T*) |
Leica TCRP1201 Total Station TPS1200 Series
Leica TPS1200+ Total Stations Packed with exciting new features, built for speed, accuracy, ease-of-use and reliability. Leica TPS1200+ total stations carry out even the most complex tasks, better and more efficiently than ever before. And, best of all, they combine perfectly with GPS1200+.
Superb measurement technology
High accuracy angle measurements and precise long-range distance measurements backed by automatic fine pointing and fast, reliable reflector location. You work faster, more precisely and more relaxed.
Easy to operate
Intuitive interface, powerful data management, on-board routines and programs: all easy to use and identical for TPS, GNSS and RX1250.
Large graphic colour display
Easy viewing of entire surveyed area and immediate access to all measured data. You see exactly what you’ve done and what you’ve still to do.
Totally flexible
Configure and program TPS1200+ in the way you want, for your application for the way you work and for the data output you require. A complete series TPS1200+ total stations cover a range of models and options. Select the ones that suit you best.
Use TPS1200+ for everything
Use TPS1200+ total stations for surveying, engineering, stakeout, topo, monitoring etc. Combine them with GNSS Benefit from huge productivity of System 1200.
Features
- Fast, precise, long-range EDM
Coaxial, high-accuracy EDM with various measuring modes. 3 km range to a single prism. - PinPoint R1000
Best reflector- less electronic distance measurement technology in combination of range, accuracy, mea- surement time and laser spot size in the market. Measure more than 1000 m range with true PinPoint accuracy. - Bluetooth Wireless- Technology integrated
Wireless transfer of data to PDA’s and cell phones. - High-tech angle measurement
High-accuracy continuous angle-measuring system. Choice of accuracies from 1 to 5 seconds. - Endless drives
For fast, comfortable operation and precise pointing. - RadioHandle
Transfers data instantly between TPS1200+ and remote control unit. Powered by TPS1200+ plug-in battery. - Plug-in Li-Ion battery
Small, light, high-capacity Lithium-Ion battery powers TPS1200+ for hours and hours. - Well-designed keyboard
Clear, logical arrangement with alphanumeric, function and user-definable keys. - Touch screen
Gives instant access to all functions without using the keyboard. - Laser plummet
Centers TPS1200+ easily, quickly and exactly over a ground point.
Specifications:
| Angle measurement | |
| Accuracy (standard deviation ISO 17123- 3) | 1’’ (0.3 mgon) |
| Method | absolute, continuous, diametrical |
| Compensator | Working range: 4’ (0.07 gon) Setting accuracy: 0.5’’ (0.2 mgon) Method: centralized dual axis compensator |
| Distance measurement (IR) | |
| Round prism (GPR1): | 3000 m (10000 ft) |
| 360° prism (GRZ4): | 1500 m (5000 ft) |
| Mini prism (GMP101): | 1200 m (4000 ft) |
| Reflector tape (60 mm x 60mm): | 250 m (800 ft) |
| Shortest measuring distance: | 1.5 m |
| Accuracy (standard deviation ISO 17123-4) / Measure time | Standard mode: 2 mm + 2 ppm / typ. 1.5 s Fast mode: 5 mm + 2 ppm / typ. 0.8 s Tracking mode: 5 mm + 2 ppm / typ. < 0.15 s Averaging mode: 2 mm + 2 ppm Display resolution: 0.1 mm |
| Method | Principle: Phase measurement Type: Coaxial, infrared laser |
| PinPoint reflectorless distance measurement (RL) (Object in shade, or sky overcast) | |
| PinPoint R100 | 170 m / 100 m (Kodak Gray Card: 90% reflective / 18% reflective) |
| PinPoint R300: | 500 m / 300 m (Kodak Gray Card: 90% reflective / 18% reflective) |
| Long Range to round prism (GPR1) | 1.5 m |
| Long Range to round prism (GPR1):Long Range to round prism (GPR1) | 1000 m – 7500 m |
| Accuracy / Measurement Time (standard deviation, ISO 17123-4) (object in shade, sky overcast) |
Reflectorless < 500m: 3 mm + 2 ppm / typ. 3-6 s, max. 12 s Reflectorless > 500m: 5 mm + 2 ppm / typ. 3-6 s, max. 12 s Long Range: 5 mm + 2 ppm / typ. 2.5 s, max. 12 s |
| Laser Dot Size | At 20m: approx 7mm x 14mm At 100m: approx 12mm x 40mm |
| Method PinPoint R100 | Phase measurement (coaxial, visible red laser) |
| PinPoint R300 | System analyzer (coaxial, visible red laser) |
| Motorized | |
| Maximum speed | 45° / s |
| Automatic Target Recognition (ATR) | |
| Range ATR / Lock Mode | Standard prism (GPR1): 1000 m (3300 ft) / 800 m (2600 ft) 360° prism (GRZ4): 600 m (2000 ft) / 500 m (1600 ft) Mini prism (GMP101): 500 m (1600 ft) / 400 m (1300 ft) Reflector tape (60 mm x 60mm): 55 m (175ft) / - Shortest measuring distance: 1.5 m / 5 m |
| Accuracy / Measure time | Positioning accuracy (GPR1): < 2 mm Measure time (GPR1): 3-4 s |
| Maximum speed (LOCK mode) | Tangential (standard mode): 5 m / s at 20 m, 25 m / s at 100 m Radial (tracking mode): 4 m / s |
| Method | Digital image processing (laser beam) |
| PowerSearch (PS) | |
| Range | Standard prism (GPR1): 200 m (650 ft) 360° prism (GRZ4): 200 m (650 ft) (perfectly aligned to the instrument) Mini prism (GMP101): 100 m (330 ft) Shortest measuring distance: 5 m |
| Searching | Search time: Typ. < 10 s |
| Method | Digital signal processing (rotating laser fan) |
| General data | |
| Telescope | Magnification: 30 x Free objective aperture: 40 mm Field of view: 1°30’ (1.66 gon) / 2.7 m at 100 m Focusing range: 1.7 m to infinity |
| Keyboard and Display | Display: ¼ VGA (320*240 pixels), graphic LCD, illumination, touch screen (optional) Keyboard: 34 keys (12 function keys, 12 alphanumeric keys), illumination Angle display: 360° ’ “, 360° decimal, 400 gon, 6400 mil, V% Distance display: meter, int. ft, int. ft/inch, US ft, US ft/inch Position: face I standard / face II optional |
| Data storage | Internal memory: 32 MB (optional) Memory card: CompactFlash cards (32 MB and 256 MB) Number of data records: 1750 / MB Interface: RS232, BluetoothTM (optional) |
| Laser plummet | Centering accuracy: 1.5 mm at 1.5 m (deviation from plumb line) Laser dot diameter: 2.5 mm at 1.5 m |
| Endless drives | Number of drives: 1 horizontal / 1 vertical |
| Circular level | Sensitivity: 6’ / 2 mm |
| Internal Battery (GEB221) | Type: Lithium-Ion Voltage: 7.4 V Capacity: 1.9 Ah Operating time: Typ. 10 h |
| Environmental specifications | Working temperature range: -20°C to +50°C Storage temperature range: -40°C to +70°C Dust / water (IEC 60529): IP54 Humidity: 95%, non-condensing |
