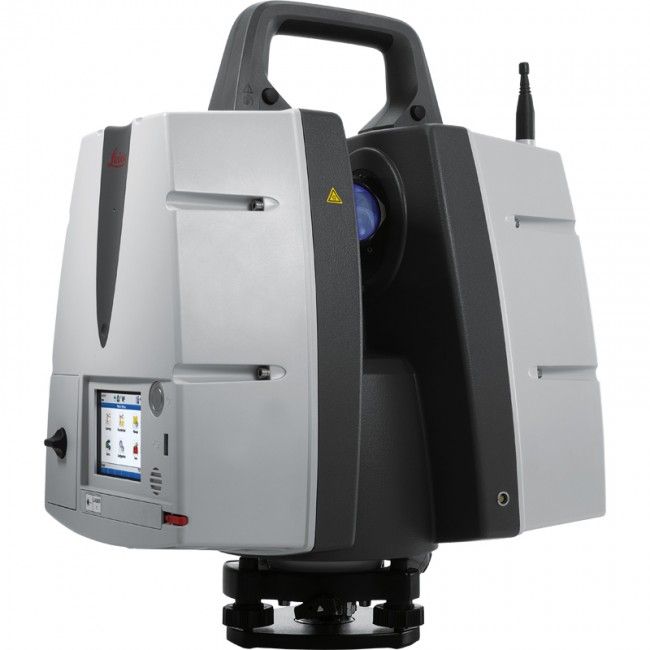

Leica ScanStation P40 Laser Scanner
The Leica ScanStation P40 delivers highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270 m.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Leica ScanStation P40 3D Laser Scanner
The adaptable Leica ScanStation P40 supplies an alluring combination of
high accuracy and fast full-dome interior scanning at ranges of up to 270
meters.
Continued operation under the harshest conditions
The Leica ScanStations delivers continued operation in 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.
A complete all in one scanning solution
An integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView.
Specifications:
| System Accuracy | |
| Accuracy of single measurement | Range accuracy: 1.2mm + 10ppm over full range Angular accuracy: 8" horizontal; 8" vertical 3D position accuracy: 3mm at 50m; 6mm at 100m |
| Target acquisition | 2mm standard deviation at 50m |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1", dynamic range ±5', accuracy 1.5" |
| Distance Measurement System | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology |
| Wavelength | 1550nm (invisible) / 658nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | < 0.23mrad (FWHM, full angle) |
| Beam diameter at front window | ≤ 3.5mm (FWHM) |
| Range and reflectivity | Minimum range 0.4m |
| Scan rate | Up to 1’000’000 points per second |
| Range noise | 0.4mm rms at 10m 0.5mm rms at 50m |
| Field-of-View | Horizontal: Vertical: |
| Data storage capacity | 256GB internal solid-state drive (SSD) or external USB device |
| Communications/ Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full colour VGA graphic display (640×480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014) Centring accuracy: 1.5mm at 1.5m Laser dot diameter: 2.5mm at 1.5m Selectable ON/OFF |
| Imaging System | |
| Internal camera | Resolution: 4 megapixels per each 17°×17° colour image; 700
megapixels for panoramic image Pixel size: 2.2µm Video: Streaming video with zoom; auto-adjusts to ambient lighting White balancing: Sunny, cloudy, warm light, cold light, custom HDR: Tonemapped / full range |
| External camera | Canon EOS 60D/70D/80D supported |
| Manufacturer | Trimble |
|---|
