Leica ScanStation P30 3D Laser Scanner
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

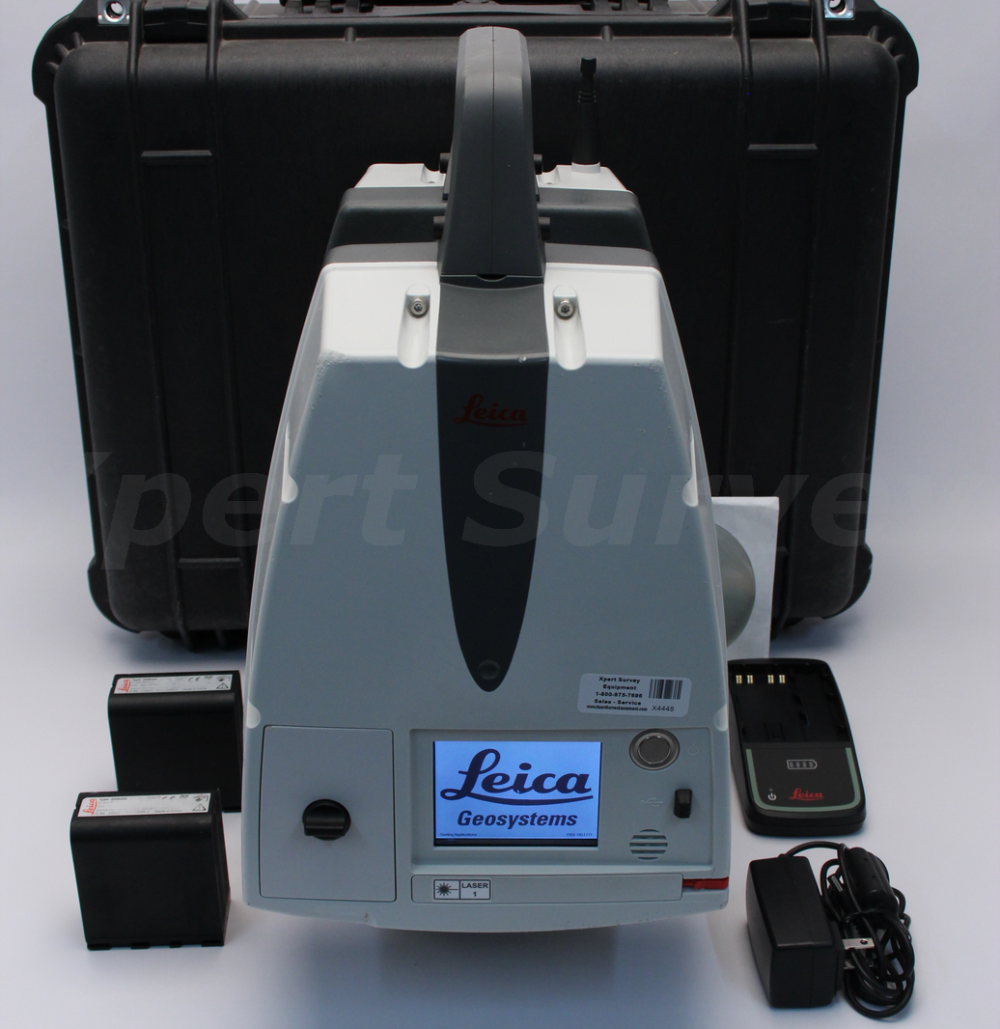

* Leica ScanStation P30 3D Laser Scanner [ID -L/T*]
* AC Adapter
* Battery Pack (2)
* Battery Charger
* User Manual on CDROM
* Carrying Case
Leica ScanStation P30 Laser Scanner
The right choice
Whether you need an as-built representation of a large industry complex, a detailed scan of a piping system or a 3D point cloud of a ship hull, you know you’ll need accurate life cycle representations in plant engineering and ship building. The combination of speed, range, accuracy and ruggedness make the new ScanStation laser scanners from Leica Geosystems the right choice, because every detail matters.
High performance under harsh conditions
The Leica ScanStations deliver highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.
Reduced downtime
The extremely durable new laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from –20°C to +50°C and comply with the IP54 rating for dust and water resistance.
Complete scanning solution
Leica Geosystems offers the new Leica ScanStation portfolio as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView.
Specifications:
| System Accuracy | |
| Accuracy of single measurement | Range accuracy: 1.2mm + 10ppm over full range Angular accuracy: 8" horizontal; 8" vertical 3D position accuracy: 3mm at 50m; 6mm at 100m |
| Target acquisition | 2mm standard deviation at 50m |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1", dynamic range ±5', accuracy 1.5" |
| Distance Measurement System | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology |
| Wavelength | 1550nm (invisible) / 658nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | < 0.23mrad (FWHM, full angle) |
| Beam diameter at front window | ≤ 3.5mm (FWHM) |
| Range and reflectivity | Minimum range 0.4m Maximum range at reflectivity 120m: 18% |
| Scan rate | Up to 1’000’000 points per second |
| Range noise | 0.4mm rms at 10m 0.5mm rms at 50m |
| Field-of-View | Horizontal 360° Vertical 290° |
| Data storage capacity | 256GB internal solid-state drive (SSD) or external USB device |
| Communications/ Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full colour VGA graphic display (640×480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014) Centring accuracy: 1.5mm at 1.5m Laser dot diameter: 2.5mm at 1.5m Selectable ON/OFF |
| Imaging System | |
| Internal camera | Resolution: 4 megapixels per each 17°×17° colour image; 700
megapixels for panoramic image Pixel size: 2.2µm Video: Streaming video with zoom; auto-adjusts to ambient lighting White balancing: Sunny, cloudy, warm light, cold light, custom HDR: Tonemapped / full range |
| External camera | Canon EOS 60D/70D/80D supported |
| Power | |
| Power supply | 24 V DC, 100 – 240 V AC |
| Battery type | 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable) |
| Duration | Internal > 5.5h (2 batteries) External > 7.5h (room temp.) |
| Environmental | |
| Operating temperature | –20°C to +50°C / –4°F to 122°F |
| Storage temperature | –40°C to +70°C / –40°F to 158°F |
| Humidity | 95%, non-condensing |
| Dust/Water | Solid particle/liquid ingress protection IP54 (IEC 60529) |
| Physical | |
| Scanner | Dimensions (D×W×H): 238mm × 358mm × 395mm / 9.4" × 14.1" × 15.6" Weight: 12.25kg / 27.0lbs, nominal (w/o batteries) |
| Battery (internal) | Dimensions (D×W×H): 40mm × 72mm × 77mm / 1.6" × 2.8" × 3.0" Weight: 0.4kg / 0.9lbs |
| Mounting | Upright or inverted |
| Manufacturer | Leica |
|---|
