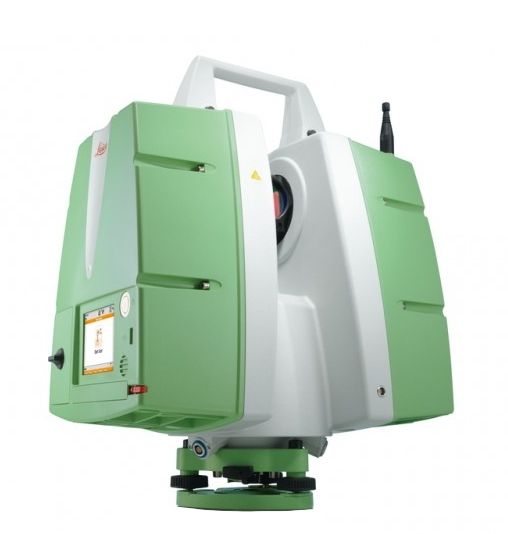

Leica ScanStation P16 3D Laser Scanner
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Leica ScanStation P16 3D Laser Scanner [ID -L/T*]
* USB Cable
* Battery Pack
* Carrying Case
Leica ScanStation P16 3D Laser Scanner
Combining exceptional quality and operation
The Leica ScanStation P16 is the best entry level 3D laser scanning machine, Its low cost of owernship and easy to use interface make this scanner a solution that even non-surveying users can use for all short range applications up to 40m.
Ease of use
The Leica ScanStation P16 touch screen interface is intuitive and user friendly. Featuring a one-touch scan button and wizard style software this guarantees easier workflow and enables the user to check data faster in the field. Featuring remote control by WLAN, any handheld device can operate the P16.
Bang for your buck
Being cost effective coupled with reliable support from Leica results in a low cost of ownership and makes the P16 the perfect solution for entry level teams just starting out in the 3D Laser Scanning field.
Infrastructure, Plant & Ships, Architecture, Buildings & BIM, Forensics, Archaeology & Heritage the P16 is a complete scanning solution
Whether you need 3D data for integration into Building Information Modelling (BIM), a detailed scan of a piping system, reconstruction of a traffic accident, create virtual reality scenarios for security planning or you want to digitally explore an archaeological excavation or research historic monuments in 3D. ScanStation laser scanners from Leica can do it all.
Specifications:
| System Accuracy | |
| Accuracy of single measurement | Range accuracy: 1.2mm + 10ppm over full range Angular accuracy: 8" horizontal; 8" vertical 3D position accuracy: 3mm at 40m |
| Target acquisition | Up to 40m in post-processing software |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1", dynamic range ±5', accuracy 1.5" |
| Distance Measurement System | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitizing (WFD) technology |
| Wavelength | 1550nm (invisible) / 658nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | <0.23mrad (FWHM, full angle) |
| Beam diameter at front window | ≤ 3.5mm (FWHM) |
| Range and reflectivity | Up to 40m; 18% reflectivity (minimum range 0.4m) |
| Scan rate | Up to 1’000’000 points per second |
| Range noise | 0.4mm rms at 10m 0.5mm rms at 40m |
| Field-of-View | Horizontal: 360° Vertical: 270° |
| Data storage capacity | 256GB internal solid-state drive (SSD) or external USB device |
| Communications/ Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full color VGA graphic display (640×480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014) Centering accuracy: 1.5mm at 1.5m Laser dot diameter: 2.5mm at 1.5m Selectable ON/OFF |
| Imaging System | |
| Internal camera | Resolution: Pixel size: Video: White balancing: HDR: |
| External camera | Canon EOS 60D and 70D supported |
| Manufacturer | Leica |
|---|
