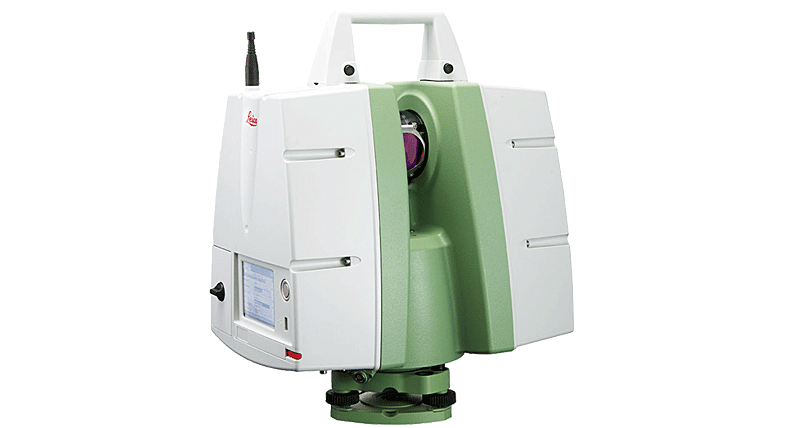

Leica ScanStation C5 Laser Scanner
The ScanStation C5 Laser Scanner is great for entry level surveyors looking for professional quality with the option to upgrade features for even more flexibility.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Leica ScanStation C5 LaserScanner
Professional quality at an entry level price
The cost effective Leica ScanStation C5 is a great starting
Scanner for companies entering laser scanning. This platform can contain
all of the following features in one machine:
- High performance laser scanner
- Data storage
- Touch screen interface
- Video camera
- Laser plummet
Additional upgrades for individual solutions
Add additional features to the life of your ScanStation to meet the increasing demands of client jobs. The Leica ScanStation C5 is easily upgradeable to long range, high-accuracy dual-axis compensation for standard survey workflows, faster scan speed and a high-res camera for mapping colors.
Low cost of ownership
With low initial pricing and the option to upgrade certain features, users are eased into laser scanning with a great base unit to start and are able to add needed features over time. This gives users an adjustable, future safe investment that reduces the costs you pay!
User Friendly interface
Leica's ScanStation C5 features an user friendly, easy to learn, color touch screen interface to get users started right away. The ScanStation also features an optional, convenient handheld control.
Specifications:
| General | |
| Instrument type | Compact, pulsed, high speed laser scanner, with surveygrade accuracy, range, and field-of-view; integrated video camera and laser plummet |
| User interface |
Onboard control, notebook, tablet PC or remote controller |
| Data storage | Integrated solid-state drive (SSD), external PC or external USB device |
| Camera | Auto-adjusting, integrated high-resolution video camera |
| System Performance | |
| Accuracy of single measurement | Position: 6 mm Distance: 4 mm Angle (horizontal/vertical): 60 µrad / 60 µrad (12” / 12”) |
| Modeled surface precision | 2 mm |
| Target acquisition | 2 mm std. deviation |
| Laser Scanning System | |
| Type | Pulsed; proprietary microchip |
| Color | Green, wavelength = 532 nm |
| Laser Class | 3R (IEC 60825-1) |
| Scan resolution | |
| Spot size | From 0 – 50 m: 4.5 mm (FWHH-based); 7 mm (Gaussian-based) |
| Point spacing | Fully selectable horizontal and vertical; <1 mm minimum spacing, through full range; single point dwell capacity |
| Field-of-View | Horizontal: 360° (maximum) Vertical: 270° (maximum) Aiming/Sighting: Parallax-free, integrated zoom video |
| Scanning Optics | Vertically rotating mirror on horizontally rotating base; Smart X-Mirror™ automatically spins or oscillates for minimum scan time |
| Data storage capacity | 80 GB onboard solid-state drive (SSD) or external USB device |
| Communications | Dynamic Internet Protocol (IP) Address, Ethernet or wireless LAN (WLAN) with external adapter |
| Onboard display | Touchscreen control with stylus, full color graphic display, QVGA (320 x 240 pixels) |
| Level indicator | External bubble, electronic bubble in onboard control and Cyclone software |
| Data transfer | Ethernet, WLAN or USB 2.0 device |
| Laser plummet | Laser class: 2 (IEC 60825-1) Centering accuracy: 1.5 mm @ 1.5 m Laser dot diameter: 2.5 mm @ 1.5 m Selectable ON/OFF |
| Upgrade Options | |
| Scan rate | Basic: 25,000 pts/sec Upgrade: up to 50,000 pts/sec |
| Range | Basic: 35 m @ ≥ 18% albedo Upgrade: 300 m @ 90% albedo, 134 m @ 18% albedo |
| Dual-axis compensator | Basic: not available Upgrade: Selectable on/off, resolution 1”, dynamic range +/- 5’, accuracy 1.5" |
| Integrated camera | Basic: Streaming video with zoom; auto-adjusts to ambient lighting Upgrade: Streaming video with zoom; auto-adjusts to ambient lighting; single image acquisition for color mapping, single 17° 17° image: 1920 x 1920 pixels (4 megapixels) Full 360° x 270° dome: 260 images |
