Leica Rugby 420DG Dual Grade Laser
The Leica Rugby Grade Lasers are automatic and self levelling for jobs of any size
$0.01
Availability:
Out of stock
SKU
XP420DG
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for

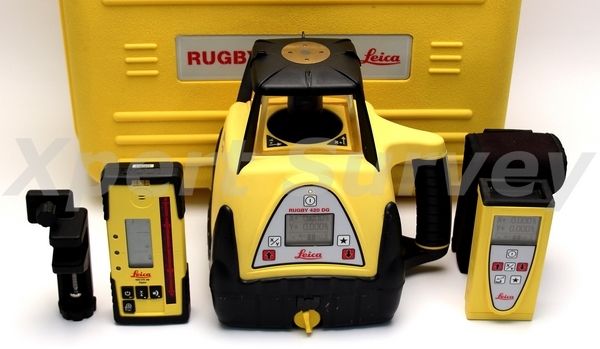

* Leica Rugby 420DG Dual Grade Laser Level [ID- X3567-L/T*]
* Leica Red Eye 160 Plus Detector w/ Manual & Bracket [ID- X3569-L/T*]
* Leica RF LR Controller w/ Case [ID- X3568-L/T*]
* Leica Bracket For Red Eye 160
* Hard Carrying Case
Leica Rugby 420DG Dual Grade Laser
The Leica Rugby Grade Lasers are automatic and self levelling for jobs of any size, large or small. They can be used for any application involving precise grade control such as:
- Building pads, parking lots and runways
- Precise depth control for sub-base and fine grade excavation
- Agricultural applications such as land leveling or tiling
- Concrete forming and framework
- Retention ponds and batters
- Setting foundations and footings
- Absolute compatibility with the widest range of machine control solutions
The Leica Rugby 420 DG is perfectly suited for the agriculture market, where accuracy over a long range is required.
- Designed for agriculture applications, such as land leveling and tiling
- Highest accuracy over long distances
- Align the laser with a simple one-person operation using the manual-axis-alignment feature
- Eliminate communication errors using the long range remote control
- Stable laser plane over the whole temperature range
- High performance for all day use
Specifications:
| Self-leveling accuracy | ±1/16” at 100’ (1.5 mm at 30 meters) |
| Self-leveling range | ± 5° |
| Grade Capability | -5% to +15% in either axis simultaneously up to +25% with up to ±1% in the cross axis |
| Head Speeds | 5, 10, 15, 20 RPS |
| Operating Temperature | -4° to +122°F (-20° to +50°C) |
| Storage Temperature (without batteries) |
-40° to +158°F (-40° to +70°C) |
| Storage Temperature (with batteries) |
+32° to +68°F (0° to +20°C) |
| Battery Life | 65 hours (4-alkaline), 130 hours (8-alkaline) 50 hours (1-NiMH pack), 100 hours (2- NiMH packs) |
| Charging time | 4.5 hours (approximate) |
| Dimensions (HWD) | 10.4 x 10.2 x 7.92” (265 x 260 x 200 mm) |
| Weight without batteries | 11.1 lbs. (5 kg) |
| Water resistance | Waterproof to IP57 Standard |
| Operating range | 1800 ft (550 meters) radius |
| Laser Diode Type | 635 nm (visible red laser) |
| Laser Classification | Class 2 IEC60825-1 |
| Manufacturer | Leica |
|---|
