Leica RTC360 3D Laser Scanner
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Leica RTC360 3D Laser Scanner [ID-L/T*]
* USB Cable
* (2) Battery Packs
* Dual Bay Battery Charger
* AC Adapter w/ Power Cable
* Carrying Case

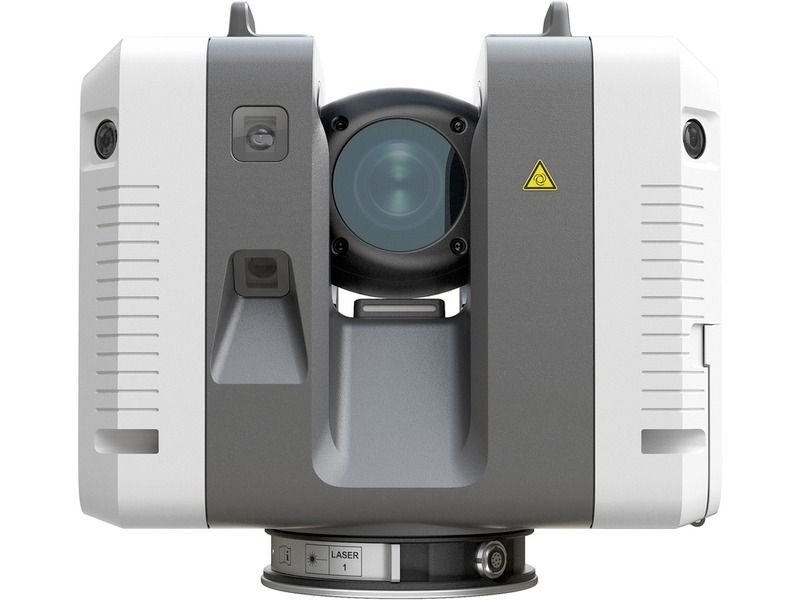

Leica RTC360 3D Laser Scanner
The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of colored 3D point clouds can be completed in under 2 minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximize productivity.
Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use one-button operation makes for fast, hassle-free scanning.
Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.
| RTC360 Specifications |
|
| Data acquisition | <2 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution |
| Real time registration | Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video enhanced inertial measurement unit |
| Double scan | Automatic removal of moving objects |
| Distance measurement | High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology |
| Field of view | 360° (horizontal) / 300° (vertical) |
| Range | Min. 0.5 - up to 130 m |
| Speed | Up to 2,000,000 pts / sec |
| Resolution | 3 user selectable settings (3/6/12 mm @ 10 m) |
| Accuracy | Angular accuracy 18” Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
| Camera | 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° x 300° spherical image |
| Speed | 1 minute for full spherical HDR image at any light condition |
| Wireless | Integrated wireless LAN (802.11 b/g/n) |
| Data storage | Leica MS256, 256 GB exchangeable USB 3.0 flash drive |
| Dust and water proofing | IP54 |
| Weight | 5.35 kg / 11.7 lbs |
