Leica RCS1100 Remote Control Surveying Unit

Leica RCS1100 Remote Control Surveying Controller

RCS1100 stands for Remote Control Surveying. The RCS1100 enables survey instruments of the TPS1100 and TPS1000 series to be remote controlled.

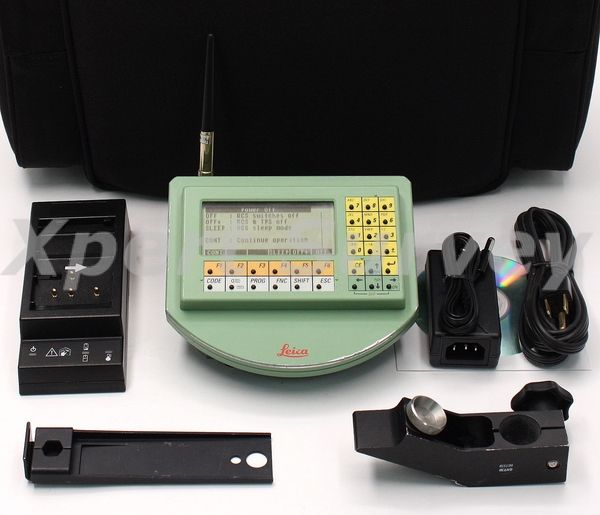

The control unit, the radio modem and the power supply are all contained in a compact, ergonomically-designed housing. The incorporated radio modem is used together with the TCPS26 radio modem as a basic station in the TPS1100.

Instruments in locations which are exposed, difficult to reach, or cramped, can be conveniently operated with the RCS1100 control unit.

The RCS1100 can remotely control almost all of the functions and applications of TPS1100 and TPS1000 series instruments.

Because its keyboard and LCD are the same as those in the TPS1100, the RCS1100 is operated in exactly the same way. If the TPS1000 is used, the keyboard template for assigning the keys is applied.

Specifications:

Design	Aluminium housing with integrated NiMH battery and with optional radio modem.
Battery GEB111	Type: Nickel metal hydride (NiMH) Capacitance: 1.8Ah
Power supply	The voltage when using an external cable must be within the range 11.5V to 14V (DC)
Current consumption	12/6V= 0.4 Amax
Environment	Splashproof and dustproof (IP53 in accordance with IEC 529)
Temperature	Operation: 20°C to +50°C (-4°F to +122°F) Storage: -40°C to +70°C (-40°F to +158°F)
Dimensions	160 mm x 135 mm x 50 mm
Weight	RCS1100 including modem 770g Battery GEB111 200g Reflector pole adapter 180g
Interface	Conformable with RS232 TxD, RxD, GND No hardware handshake
Baud rate	2400/4800/9600/19200/34800 bps Serial, asynchronous
Data format	7/8 data bits 1/2 stop bits Parity none/even/odd
Keyboard and display	Alphanumeric characters: Maximum 256 Character set: Expandet ASCII set as standard. An optional character set can be loaded in addition Type of display: LCD Size of display: 8 rows of 32 characters
Graphics capability	Yes, 64 x 256 pixels
