Leica MNA950 Dual-GNSS Power Antenna
Versatile system that suits many applications (pole, base, machine, supervisor, …) w/ Bluetooth
$0.01
Availability:
Out of stock
SKU
XPGPS213
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for
* Leica MNA950 Dual-GNSS Power Antenna [ID- -L/T*]

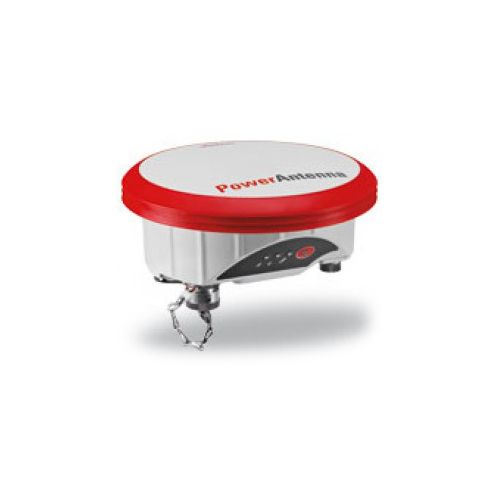

Leica MNA950 Power Antenna
Leica PowerAntenna is the world’s first system that uses the same components for on- and off-machine applications. Combine it with the Leica PowerBox to boost productivity of your excavator with dual GNSS positions, move it on a pole for staking out or checking as-builts while the excavator continues in single GNSS operation, or use it as a base station that site personnel easily can set-up. The scalable design allows you tailor the system precisely to your needs.
Features:
- Scalable GNSS
- - upgradeable as you grow (pay for what you need)
- Versatile System
- suits many applications (pole, base, machine, supervisor, …)
- extendable to dual GNSS
- Stake-out / Grade Check
- choose from a wide range of communication devices
- use one controller for many sensors
- Bluetooth® for cable-free communication
- Superior GNSS Leica Geosystems Technology
- GLONASS enabled for better Satellite coverage
Specifications:
| GNSS technology | SmartTrack+ dual frequency 14 L1 + 14 L2 GPS 12 L1 + 12 L2 GLONASS |
| RTK Technology | SmartCheck+, for advanced, long range RTK with 99.99% Reliability |
| Kinematic RTK Accuracy (phase), after initialisation | Horizontal: 10 mm + 1 ppm Vertical: 20 mm + 1 ppm |
| Power Supply | Li-Ion 2.2 Ah / 7.4 V for Pole Solution (last for 5 h). Ni-MH 9.0 Ah / 12V for reference setup. On-machine via PowerBox. |
| Position output rate | Off-machine: 1 Hz standard, 5 Hz option On-machine: max. 20 Hz (with PowerBox) |
| RTK data Formats | Leica (Lite), CMR, CMR+, RTCM v2.x / 3.0; |
| Ref. Station | Leica Lite |
| Communication PowerAntenna |
RS232, RS422, Bluetooth® Wireless Technology |
| Shock | ISO 9022 |
| Vibration | MIL 810.F Cat 24 |
| Environmental specifications | IP67 |
| Manufacturer | Leica |
|---|
