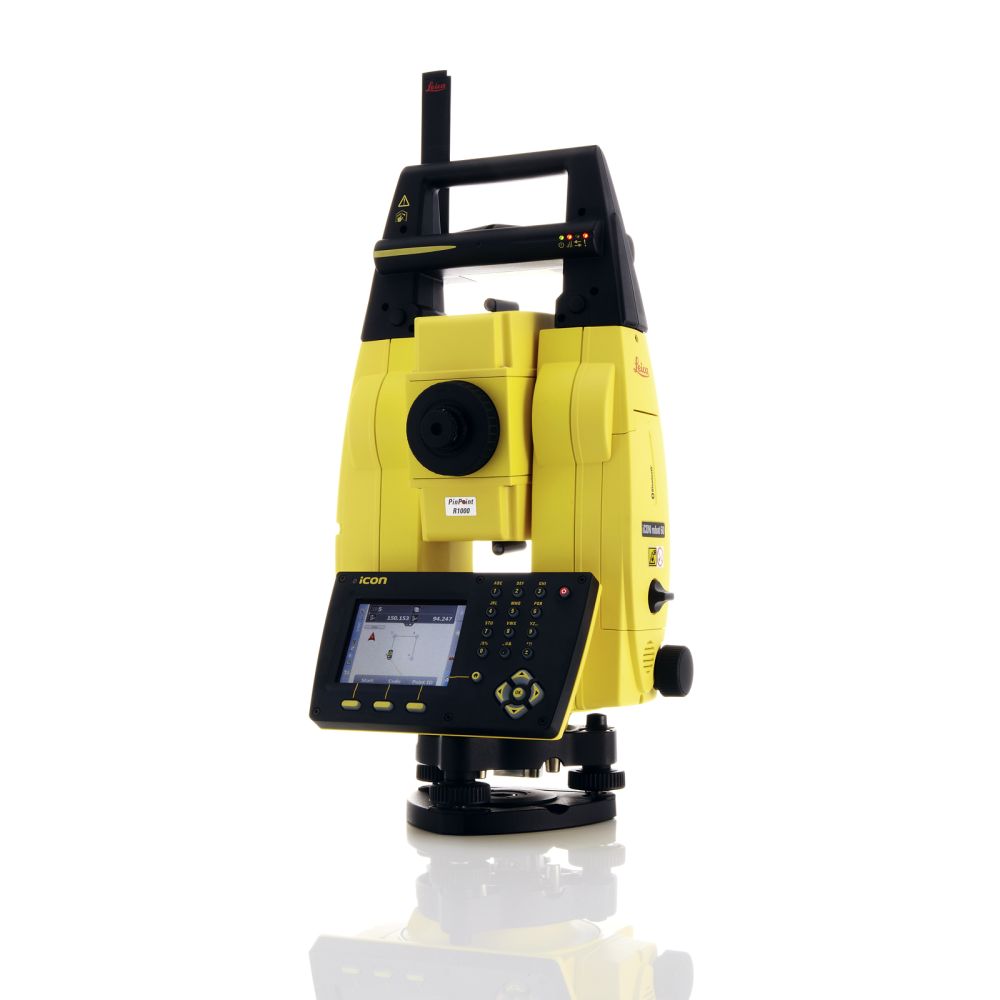

Leica iCON Robot 60 Total Station

Leica iCON Robot 60 Total Station

Leica iCON robot 60 perfects one-person construction layout and 3D machine control. Its high performance tracking, innovative lock & find mechanisms and software that is tailored per work step, make it the ideal partner on site.The powerful iCONstruct field software used as remote control optimizes the functionality.

• Setup Pilot – world’s first fully automatic setup measurement method
• Cube Search – boosts prism search to a maximum
• Target Snap – ignores other prisms, just locks to yours
• ATACK support for PaveSmart 3D

Applications:

• Lay out lines for footings or chalk line for formwork on foundation
• Lay out points on blinding layer such as pipe insert or cut-outs before pouring concrete
• MEP layout of wall penetrations for pipes, hanger locations for HVAC and duct work, inserts and slits for sheet metal work
• Controlling a wide variety of machines, such as curb & gutter or milling machines, asphalt or concrete pavers, graders or dozers, rock drilling machines or excavators

Hardware Features

• Cube Search builds a virtual cube around the prism position, dynamically updates its position and searches only within its dimensions when the tracking is interrupted
• Industry leading colored touch screen for best visibility
• Target Snap ensures to lock only to your pole or machine prism by excluding any “learned” points during a search routine
• Finish job in two-person mode if controller is unavailable
• PinPoint R1000 laser for highest measurement precision

Software Features

• Setup Pilot automatically finds and measures all prisms in range, compares their geometry and calculates the total station’s position without user interaction
• ATACK supports the automated track alignment procedure of curb & gutter and main line pavers
• Graphical map view for quick navigation and point/ line selection
• No matter if onboard manual total stations, in combination with GPS or on a tablet as remote control of robotic total stations, the same iCONstruct software is now seamlessly integrated across the entire portfolio
