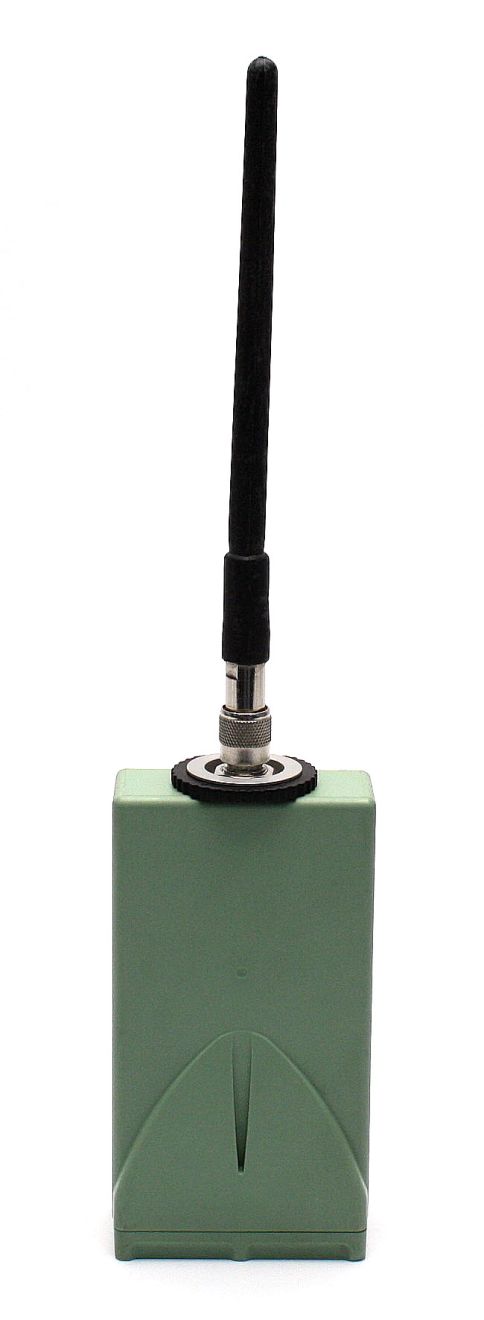

Leica GFU15-2 450-470 Mhz PDL Radio Receiver PDLGFU15-2
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Frequency Range: 450-470 MHz
* Antenna
Leica PDL Powered Radio GFU15-2 Spec SheetLeica PDL Powered Radio GFU15-2
The PDL is an advanced, high speed, wireless data link that is designed specifically for GPS/RTK applications. Your success in using the PDL is our primary goal.
The PDLGFU15 is a radio modem receiver that is compatible with the PDL and RFM96 product family of radio modems. The PDLGFU15 is designed specifically for integration with Leica Geosystems GPS 1200 System devices. Its small size, light weight and power efficient operation provide superior performance.
Receives Fast Over-the-Air Data Rate:
- Reduced latency provides better GPS position information
- Lower power consumption allows longer field operation
- Greater throughput handles GPS RTK correction
Rugged Construction – Designed specifically for GPS RTK field surveying:
- Water tight operation stands up to bad weather conditions
- Built-in mounts simplify integration with the GPS System 1200
Compatible – Interoperable with RDDR, RFM and Trimble® products:
- Benefit by the latest technology with your existing equipment
- Facilitates GPS equipment mix and match
- Provides upgrade path for existing installations
| Specifications | |
| General | |
| Interface | LEMO style connector with RS-232 interface configurable from 1200 to 38400 baud operation with one start, 8 data, optional parity, and one stop bit. |
| Power Supply | Power supplied through the LEMO style connector. Standard Use: 12 VDC (Voltage Range of 9-16 VDC). Power consumption: 45 mA at 12 VDC. |
| Radio Receiver |
|
| Frequency Ranges | 450-470Mhz |
| Frequency Control | Synthesized frequency control with approximately 1600 channel capability. Radio modems are pre-programmed |
| Channel Spacing | Channel spacing 12.5 kHz and 25 kHz. |
| Frequency Stability | 2.5 ppm crystal reference is standard. |
| Receiver | Sensitivity -116 dBm or better (12dB SINAD). Front-end bandwidth 20 MHz. Selectivity -60 dB. Spurious and image rejection -65 dB. Conducted spurious -57 dB. Carrier detect attack time 2 ms. |
| Environmental | |
| Size | 2.83"W x 2.5"D x 4.59"H (7.2 cm W x 6.37 cm D x 11.7 cm H) |
| Weight | 2.88 ounces (0.082 kg) |
| Temperature Range | -22° to 140° F (-30° to 60° C) Operating -67° to 185° F (-55° to 85° C) Non-operating |
| Manufacturer | Leica |
|---|
