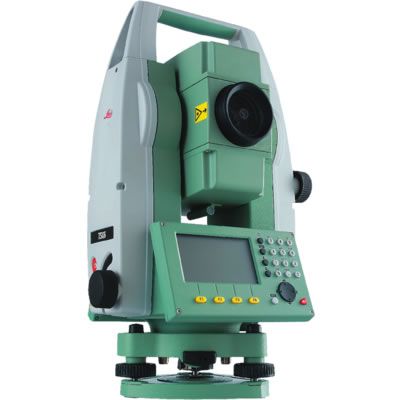

Leica FlexLine TS06 Flexible Total Station
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Leica FlexLine TS06 Total Station
For complete flexibility, a Total Station that is ready for any challenge. Designed for mid accuracy applications. As standard, an alpha-numerical keyboard and a complete set of application software is included. For additional flexibility, a wide range of options ensures that you can always count on your TS06 Total Station.
Bluetooth® and USB Option:
- Bluetooth® cable-free connection
- USB memory stick for flexible data transfer (GSI, DXF, ASCII, LandXML, CSV)
- Mini-USB for fast data transfer
Whether you measure to prisms, or prefer direct measurements to objects, the choice is always yours. A selection of EDM options delivers exactly what you need.
With a FlexLine TS06 Total Station you can be sure that you’re fully equipped with the flexibility that you can count on.
Specifications:
| Angle Measurement (Hz, V) | |
| Accuracy (Standard deviation ISO-17123-3) | 2” (0.6 mgon), 3” (1 mgon), 5” (1.5 mgon) (Optional) |
| Method | Absolute, continuous, diametrical |
| Display resolution | 0.1” / 0.1 mgon / 0.01 mil |
| Compensation | Quadruple axis compensation (Setting On, Off) |
| Compensator Setting accuracy | 0.5”, 1”, 1.5” |
| Distance Measurement with Reflector | |
| Range Round prism GPR1 | 3’500 m |
| Range Reflective tape (60 mm x 60 mm) | 250 m |
| Accuracy / Measurement time (Standard deviation ISO-17123-4) |
Standard: 1.5 mm+2 ppm / typ. 2.4 s, Fast: 3 mm+2 ppm / typ. 0.8 s, Tracking: 3 mm+2 ppm / typ. <0.15 s |
| Distance Measurement without Reflector | |
| Range (90% reflective) FlexPoint PinPoint – Power PinPoint – Ultra |
30 m > 400 (Optional) > 1000 (Optional) |
| Accuracy / Measurement time (Standard deviation ISO-17123-4) |
2 mm+2 ppm2 / typ. 3 s |
| Laser dot size | At 30 m: approx. 7 mm x 10 mm, At 50 m: approx. 8 mm x 20 mm |
| Data storage / Communication | |
| Extended Internal memory | Max.: 100’000 fixpoints, Max.: 60’000 measurements |
| USB memory stick | 1 Gigabyte, Transfer time 1’000 points/second (Optional) |
| Interfaces | Serial (Baudrate 1’200 to 115’200) USB Type A and mini B, Bluetooth® Wireless (Optional) |
| Data formats | GSI / DXF / LandXML / CSV / user definable ASCII formats |
| Electronic Guide Light | |
| Working Range (average atmospheric conditions) |
5 m – 150 m (Optional) |
| Positioning accuracy | 5 cm at 100 m (Optional) |
| General | |
| Telescope | |
| Magnification | 30x |
| Resolving power | 3" |
| Field of view | 1° 30’ (1.66 gon) / 2.7 m at 100 m |
| Focusing range | 1.7 m to infinity |
| Reticle | Illuminated, 5 brightness levels |
| Keyboard and Display | |
| Display | Graphics, 160 x 280 pixels, illuminated, 5 brightness levels |
| Keyboard | Alpha-numerical keyboard Second keyboard (Optional) |
| Operating System | |
| Windows CE | 5.0 Core |
| Laserplummet | |
| Type | Laser point, illuminated, 5 brightness levels |
| Centering accuracy | 1.5 mm at 1.5 m Instrument height |
| Battery | |
| Type | Lithium-Ion |
| Operating time | approx. 20 hours |
| Weight | |
| Total station including GEB211 and tribrach | 5.1 kg |
| Environmental | |
| Temperature range (operation) | -20° C to +50° C (-4° F to +122° F) Arctic Version -35° C to 50° C (-31° F to +122° F) (Optional) |
| Dust & splash proof (IEC 60529) | IP55 |
| Humidity | 95%, non condensing |
| FlexField Onboard Software | |
| Application programs | Topography (Orientation & Surveying), Stake Out, Resection, Height Transfer, Construction, Area (Plan & Surface), DTM Volume calculation, Tie Distance (MLM), Remote Height, Hidden Point, Backsight Check, Offset, Reference Line, Reference Arc, Reference Plane, COGO, Road 2D |
| Application programs | Roadworks 3D, Traverse Pro (Optional) |
| Manufacturer | Leica |
|---|
