Trimble TSC2 GPS Data Collector Field Controller

Trimble TSC2 GPS Data Collector Field Controller

Leica CS15 Field Controller Data Collector

* Leica CS15 Field Controller Data Collector w/ Options..

          - SmartWorx V. 5.50
          - SmartWorx Viva
          - COGO (V5.50)
          - COGO Area Division (V5.50)
          - DXFExport (V5.50)
          - DXFImport (V5.50)
          - Stakeout
(V5.50)
          - DetCoordSys (V5.50)
          - FieldDataExtractor (V5.50)
          - SimpleAsciiExport (V5.50)
          - DTM_Importer (V5.50)
          - LandXmlExport (V5.50)
          - Reference_Line (V5.50)
          - RoadRunner_Importers (V5.50)
          - Traverse (V5.50)
          - Alignment_Editor (V5.50)

$0.01
Availability: Out of stock
SKU
XPDC117

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

* Leica CS15 Field Controller Data Collector w/ Options.. [ID- X3995-L/T*]
          - SmartWorx V. 5.50
          - SmartWorx Viva
          - COGO (V5.50)
          - COGO Area Division (V5.50)
          - DXFExport (V5.50)
          - DXFImport (V5.50)
          - Stakeout
(V5.50)
          - DetCoordSys (V5.50)
          - FieldDataExtractor (V5.50)
          - SimpleAsciiExport (V5.50)
          - DTM_Importer (V5.50)
          - LandXmlExport (V5.50)
          - Reference_Line (V5.50)
          - RoadRunner_Importers (V5.50)
          - Traverse (V5.50)
          - Alignment_Editor (V5.50)
* AC Adapter/Charger
* Power Cord
* Stylus
* Carrying Case

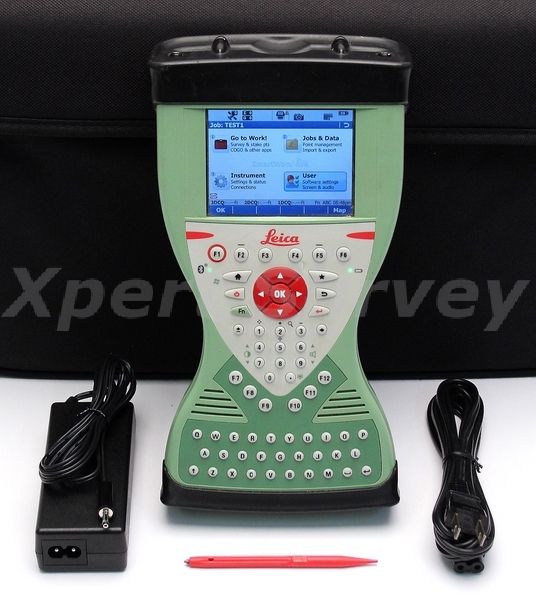

Leica CS15 Data Collector



Easy-to-use software

The CS10 and CS15 Controllers are perfectly designed to be used with SmartWorx Viva surveying software. With clear graphics, practical menu structures, understandable terminology and simplified workflows, save time and effort on any site. SmartWorx Viva is incredibly easy to learn and use. You and your field crew will be up to speed in no time.



Flexible communication & data handling

Stay connected with a wide range of communication and data storage options. With fully integrated wireless Intenna technology (Bluetooth, GSM/UMTS 3.5G), a choice of two connector modules and data storage using an SD card or USB memory stick, your CS10 and CS15 are ready for all challenges on site and in the office.



Customer care only a click away

Through Active Customer Care (ACC), a global network of experienced professionals is only a click away to expertly guide you through any problem. Eliminate delays with superior technical service, finish jobs faster with excellent consultancy support, and avoid costly site revisits with online service to send and receive data directly from the field. Control your costs with a tailored Customer Care Package, giving you peace of mind you’re covered anywhere, anytime.



Specifications:

SYSTEM SPECIFICATIONS
Operating system Windows CE 6.0
Processor Freescale i.MX31 533 MHz ARM Core
Memory (RAM) 512 MB DDR SDRAM
Internal storage (Max) 1 GB (non-volatile NAND Flash)
Screen size (Diagonal) & orientation (Primary) 8.9 cm (3.5 in)
Screen resolution & type 640 x 480 pixel (VGA) colour TFT, touch screen, sunlight-readable, LED backlight
Size (length x width x depth) 245mm x 125mm x 45mm
Batteries GEB212 (7.4V / 2600 mAH Li-Ion rechargeable)
Battery life 10 hours
ENVIRONMENTAL SPECIFICATIONS
Dust / Water resistance IP67
Shock resistance 1.2m (4 ft) / MIL-STD-810F, Method 514.5 – Cat24
Operation temperature -30°C to +60°C
Storage temperature -40°C to +80°C
More Information
Manufacturer Leica
