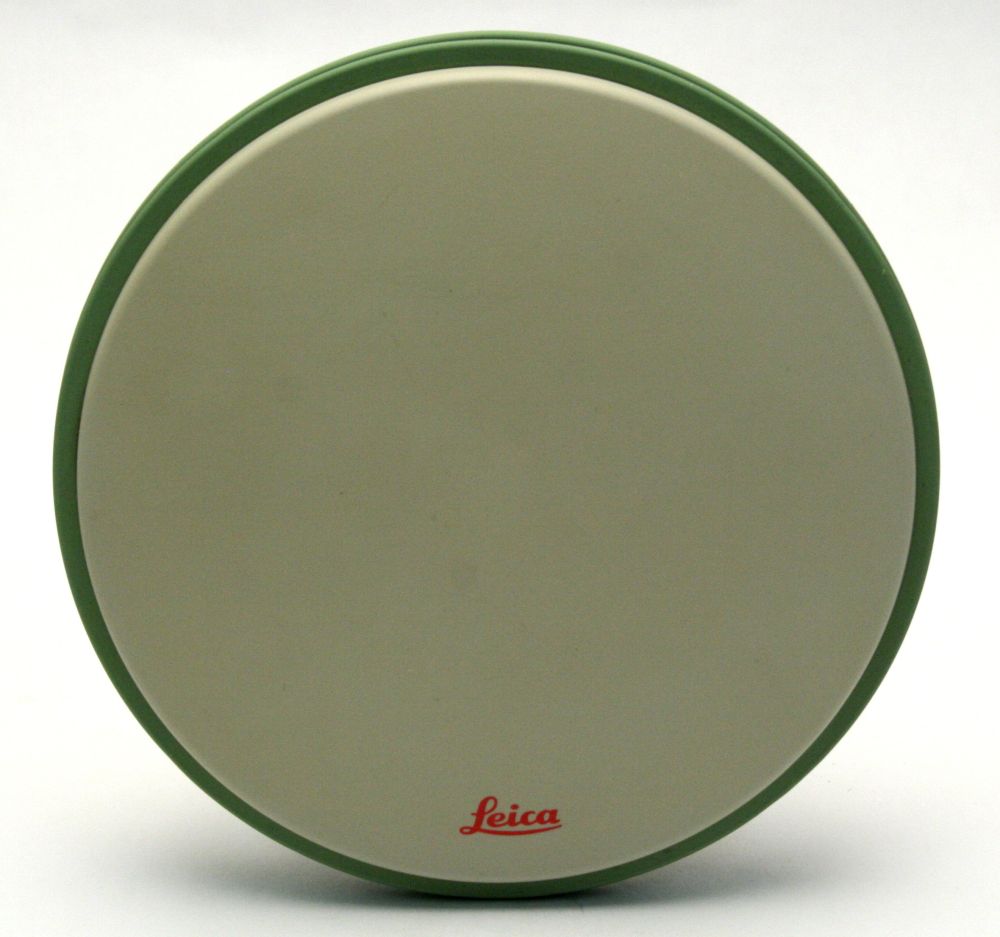

Leica AX1202 L1/L2 GPS Antenna
Leica AX1202 Antenna L1/L2 GPS/GLONASS SmartTrack+ antenna with
built in groundplane.
$0.01
Availability:
Out of stock
SKU
XPAX1202
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for
* Leica AX1202 Antenna P/N: 01017188 [ID- X2822-L/T*]
Leica AX1202 Antenna
L1/L2 SmartTrack+ antenna with built in groundplane.
Specifications:
| Temperature, operating | 40°C to +70°C Compliance with ISO9022-10-08, ISO9022-11-05 and MIL-STD-810F Method 502.4-II, MIL-STD-810F Method 501.4-II |
| Temperature, storage | -55°C to +85°C Compliance with ISO9022-10-09, ISO9022-11-06 and MIL-STD-810F Method 502.4-I, MSTD-810F Method 501.4-I |
| Humidity | Up to 100%* Compliance with ISO9022-13-06, ISO9022-12-04 and MIL-STD-810F Method 507.4-I * The effects of condensation are to be effectively counteracted by periodically drying out the product |
| Protection against Water, Sand and Dust |
IP66, IP67 Protection against water jets Protection against blowing rain Waterproof to temporary submersion into water (maximum depth of 1m) Dust-tight, protection against blowing dust Compliance with IP66 and IP67 according IEC60529 and MIL-STD-810F Method 506.4-I, MILSTD-810F Method 510.4-I, MIL-STD-810F Method 512.4-I |
| Drops Vibration | Withstands 1.5m drop onto hard surfaces Withstands vibrations during operation on large civil construction machines Compliance with ISO9022-36-08 and MIL-STD-810F Method 514.5-Cat24 |
| Functional Shock | No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150mm |
| Topple over pole | Survives topple over from a 2m survey pole onto hard wood on a concrete floor |
