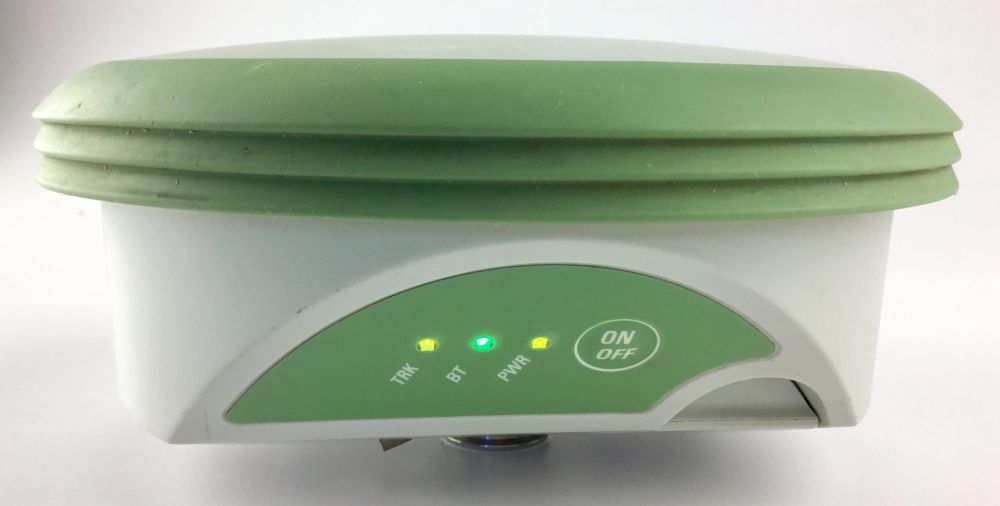

Leica ATX1230 GPS RTK Smart Rover Receiver Antenna

* Leica ATX1230 GPS RTK Smart Receiver [ID- -L/T*]

Leica ATX1230 GPS RTK Smart Receiver



Temperature, operating -40°C to +65°C*
Compliance with ISO9022-10-08, ISO9022-11-special and MIL-STD-810F Method 502.4-II,
MIL-STD-810F Method 501.4-II
*Bluetooth: -30°C to +60°

Temperature, storage -40°C to +80°C
Compliance with ISO9022-10-08, ISO9022-11-special and MIL-STD-810F Method 502.4-I,
MIL-STD-810F Method 501.4-I

Humidity Up to 100%*
Compliance with ISO9022-13-06, ISO9022-12-04 and MIL-STD-810F Method 507.4-I
* The effects of condensation are to be effectively counteracted by periodically drying out
the product
Protection against
Water, Sand and Dust
IP67
Protection against blowing rain
Waterproof to temporary submersion into water (maximum depth of 1m)
Dust-tight, protection against blowing dust

Compliance with IP67 according IEC60529 and MIL-STD-810F Method 506.4-I, MIL-STD-
810F Method 510.4-I, MIL-STD-810F Method 512.4-I

Drops Withstands 1m drop onto hard surfaces
Vibration Withstands vibrations during operation on large civil construction machines
Compliance with ISO9022-36-08 and MIL-STD-810F Method 514.5-Cat24
Functional Shock No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps
up to 150mm

Measuring Modes & Applications: Static, rapid static, kinematic On the fly L1 + L2, code, phase Real-time RTK standard Post processing DGPS/RTCM standard Survey, geodetic and real- time RTK applications

Receiver Technology: SmartTrack – patented. Discrete elliptical filters. Fast acquisition. Strong signal. Low noise. Excellent tracking, even to low satellites and in adverse conditions. Interference resistant. Code multipath mitigation.
