Faro Focus S150 3D Laser Scanner
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

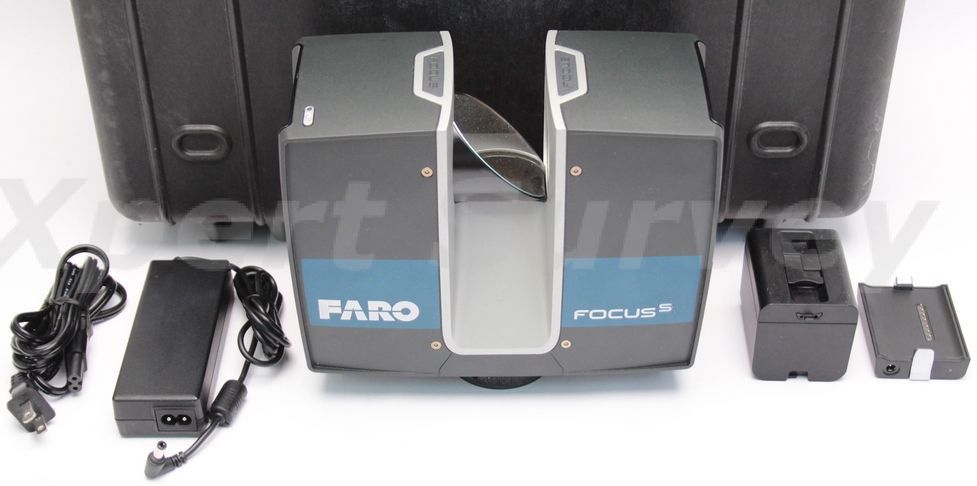

* Faro Focus S150 3D Laser Scanner [BC# -L/T*]
* AC Adapter
* Battery
* Battery Charger
* Power Cord
* User Manual On CD
* Carrying Case [G]
Faro Focus S150 3D Laser Scanner
LASER SCANNER FOR MEDIUM-RANGE APPLICATIONS
The Focus S series is the latest addition to FARO’s popular, compact, lightweight and intuitive laser scanner product line. The devices of this series are the most forward-thinking laser scanners on the market, adding several customer-centric features, such as Ingress Protection Rating (IP54), increased scanning accuracy and range, an internal accessory bay and a built-in on-site compensation routine.
The Focus S 150 combines all benefits from FARO’s well-known Focus3D Laser Scanners with today’s most innovative features to perform laser scanning in both indoor and outdoor environments - truly mobile, fast and reliable.
The FARO Focus S 150 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.
Benefits
- Scanning in rough environments while providing protection from dust, debris, and water splashes
- Confident data quality through the on-site compensation
- Reality-like scan data by increased distance accuracy and angular accuracy
- Future-proof investment and expandability due to the integrated accessory bay
- Easy handling of scanner control through its large and luminous touchscreen
Specifications:
| Ranging unit | |
| Range | 0.6m - 150m 90% (white) 0.6m - 150m 10% (dark-gray) 0.6m - 50m 2% (black) |
| Measurement speed (pts/sec): | 122,000 / 244,000 / 488,000 |
| Ranging error | ±1mm |
| Color unit | |
| Resolution: | Up to 165 megapixel color |
| High Dynamic Range (HDR) | Exposure Bracketing 2x, 3x, 5x |
| Parallax: | Minimized due to co-axial design |
| Deflection unit | |
| Field of view (vertical/horizontal): | 300° / 360° |
| Step size (vertical/horizontal): | 0,009° (40,960 3D-Pixel on 360°) / 0,009° (40,960 3D-Pixel on 360°) |
| Max. vertical scan speed: | 97Hz |
| Laser (optical transmitter) | |
| Laser class: | Laser class 1 |
| Wavelength: | 1550nm |
| Beam divergence: | 0.3mrad (1/e) |
| Beam diameter at exit: | 2.12mm (1/e) |
| Data handling and control | |
| Data storage: | SD, SDHC™, SDXC™; 32GB card |
| Scanner control: | Via touchscreen display and WLAN |
| Integrated Sensors | |
| Dual axis compensator: | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2° |
| Height sensor: | The height relative to a fixed point can be detected and added to a scan via electronic barometer |
| Compass: | The electronic compass gives the scan an orientation. |
| GNSS: | Integrated GPS & GLONASS |
| General | |
| Power supply voltage: | 19V (external supply) 14.4V (internal battery) |
| Power consumption: | 15W idle, 25W scanning, 80W charging |
| Battery life: | 4.5 hours |
| Ambient temperature: | 5° - 40°C |
| Humidity: | Non-condensing |
| Weight: | 4.2kg |
| Size: | 230 x 183 x 103mm |
