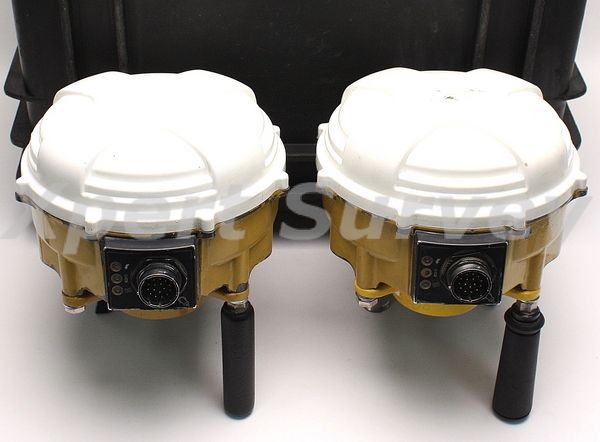

CAT MS980 Grade Control GPS Receiver Set
CAT MS980 Grade Control GPS Receiver Set
This Is Not A Full GCS900 Kit, This Kit Is Missing Some Accessories Required For Complete Setup, Accessories Vary For Each Setup
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* User Manual On CD-ROM
* Hard Carrying Case
Caterpillar MS980 GPS Receiver Set
The MS980 Smart GPS Antenna is an integrated GPS receiver and antenna designed to provide maximum portability and flexibility. It has been specifically designed for machine installation in the harsh construction environment, and has extensive field- proven performance in mining and construction applications. The dual antenna configuration is unique to Trimble GPS-based Grade Control Systems. Using GPS, the exact position, very accurate cross slope, and heading of the blade or bucket are measured. This is especially advantageous for complex design surfaces such as super-elevation grading tasks. The MS980 can also be used in a single antenna configuration on scrapers and motor graders. Ideal for a wide range of machines, you can use the MS980 Smart GPS Antenna for GCS900 blade control to 20-30 millimeters (0.1 foot).
Specifications:
| MS980 GPS Receiver | |
| Operating Temperature: | -40°C to 70°C (-40°F to 160°F) |
| Storage Temperature: | -50°C to 85°C (-67°F to 185°F) |
| Input Voltage: | 9 to 32 V DC |
| Maximum Amperage: | 1.5 amp |
| Horizontal Accuracy: | 20 mm (.78 in) |
| Vertical Accuracy: | 30 mm (1.2 in) |
| Initialization: | Automatic |
| Range: | Up to 10 km (6.2 miles) from base station |
| Start-up: | <2 min |
| 3 LED status indicators Upper LED: Power On Middle LED: Radio Signal Received Lower LED: GPS Signal Received |
|
| Control Interface: | SAE J1939 CAN |
| Network Connector: | 16-pin |
| Height: | 147 mm (5.8 in) |
| Width: | 232 mm (9.1 in) |
| Depth: | 251 mm (9.9 in) |
| Weight: | 3.8 kg (8.3 lb) |
| Manufacturer | Trimble |
|---|
