CAT MS975 Grade Control GLONASS Base Receiver
Trimble MS975 Grade Control GNSS GLONASS Base Receiver w/ Options...
- CMR Inputs
- CMR Outputs
- RTCM Inputs
- Binary Outputs
- Moving Base
- Data Logging
- L2CS
- L5
- LBand
- Enable GLONASS
- Enable Webserver
$0.01
Availability:
Out of stock
SKU
XPGPS189
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for

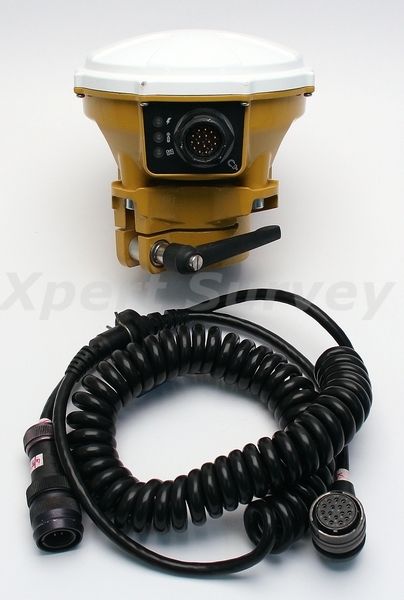

* Caterpillar MS975 GNSS Smart Antenna Base Receiver w/ Options... [ID- X3623-L/T*]
- CMR Inputs
- CMR Outputs
- RTCM Inputs
- Binary Outputs
- Moving Base
- Data Logging
- L2CS
- L5
- LBand
- Enable GLONASS
- Enable Webserver
* Caterpillar Coiled Cable
Caterpillar MS975 Smart Antenna
Features:
- An advanced RTK engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions
- Support for the GPS modernized L2C and the planned L5 signals
- Support for GLONASS, Galileo, BeiDou
- Support for SBAS systems (including: WAAS, EGNOS, MSAS, QZSS)
- Single, rugged chassis or cab mountable unit - GPS antenna, receiver and isolation system
- 3 LED indicators that provide instant operational feedback
- Single cable connector (high cycle count connector)
- 100% sealed housing
- Meets EU Restriction on Hazardous Substance (RoHS) directives
- TCP/IP capable using a serial PPP connection
- An easy to use removable mounting bracket with quick release adjustment ratchet
Specifications:
| Performance | |
| Tracking & performance: | Tracks up to 44 Satellites with 220 Tracking Channels: • GPS: L1C/A, L2C, L2E (Trimble Method for tracking L2P), and L5 Code with Full Cycle Carrier • SBAS: L1C/A and L5 (for WAAS, EGNOS, MSAS and QZSS) • Fully operational during P-code encryption • Upgradeable to GLONASS: L1C/A, L2C/A, and L2P Code with Full Cycle Carrier • Upgradeable to Galileo: L1 CBOC, E5A, E5B & E5AltBOC8 • Upgradeable to BeiDou: B1, B2 |
| Measurements | • Advanced Trimble® Maxwell™ 6 Custom GPS chip Trimble R-Track™
technology for tracking the new L2C Civil Signal, L5 Signal for GPS
modernization and GLONASS • High-precision multiple correlator for L1, L2 and L5 pseudorange measurements • Unfiltered, unsmoothed pseudo-range measurements data for low noise, low multi-path error, low time domain correlation and high dynamic response • Very low noise L1, L2 and L5 carrier phase measurements with <1mm precision in a 1 Hz bandwidth • L1, L2 and L5 Signal-to-Noise ratios reported in dB-Hz • Proven Trimble low elevation tracking technology |
| Code differential positioning | Horizontal: 0.25m + 1 ppm RMS (0.8 ft + 1 ppm RMS) Vertical: 0.50 m + 1 ppm RMS (1.6 ft + 1 ppm RMS) |
| Real Time Kinematic (RTK) positioning | Horizontal: 8 mm + 0.5 ppm RMS (0.032 ft + 0.5 ppm) Vertical: 15 mm + 0.5 ppm RMS (0.05 ft + 0.5 ppm) |
| Initilization time | Typically < 10 seconds + 0.5 times baseline length in km, up to 30 km (Regular RTK operation with base station) |
| Initilization reliability | Typically > 99.9% |
| Physical | |
| Size: | 118.9 mm x 190 mm x 194.6 mm |
| Weight | 1.83 kg |
| Mounting | Mast mounting bracket |
| Network connector | 16 pin Amphenol bayonet, sealed |
| Indicators | 3 Yellow LEDs Upper: DC Power Middle: GPS correction signal status Lower: GPS Signal status |
| Environmental | |
| Operating temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage temperature | -50°C to +85°C (-67°F to +185°F) |
| Humidity | Waterproof, 100% fully sealed |
| Sealing | +/- 5 psi sealing |
| Shock - Survival | 75 Gs, 6 milliseconds duration, 3 shocks in each of the three mutually perpendicular axes |
| Shock - Operating | 40 Gs 10 milliseconds duration |
| Vibration | 15.3 gRMS |
| EMC | EN13309:2000, CE Mark, RCM |
| Technical | |
| Electrical Input voltage | 9 to 32 VDC |
| Electrical input power | 18W maximum 5W nominal |
| Control interface | J1939 CAN network (two buses) RS-232 Serial (two ports) |
| Reverse voltage protection | Yes |
| Load dump protection | Yes |
| Manufacturer | Trimble |
|---|
