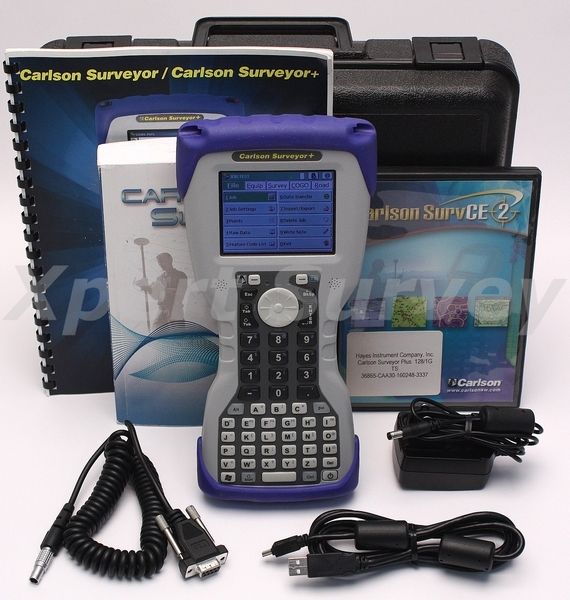

Carlson Surveyor + Plus Field Controller Data Collector
Carlson Surveyor + Data Collector Field Controller w/ Options...
- SurvCE Version 2.52
- TS
$0.01
Availability:
Out of stock
SKU
XPDC47
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Request a Quote for
- SurvCE Version 2.52
- TS
* RS232 PC Interface Cable
* USB PC Interface Cable
* Carlson Quick Start Guide
* Carlson SurvCE 2 Software CD-ROM
* User Manual On CD-ROM
* Hard Carrying Case
Carlson Surveyor Plus Field Controller
The speed you need… The reliability you deserve
The fastest, most durable and powerful handheld computer available today
COMPLETELY RUGGEDIZED
IP67 water & dust resistant; magnesium housing – a full metal jacket!
MORE MEMORY
Up to 1 gigabyte with option to expand
COMPACT/CONVENIENT CONNECTIONS
2 styles of USB connections located on top for convenience
EASY TO HOLD/CONTROL
Just 2 pounds! Keys’ size & location optimized for precise handling
BACK LIT CONTROL KEYS
Easily see when quick command keys are activated
LONGER BATTERY LIFE
8-10 hours standard with option to add second battery
Specifications;
The speed you need… The reliability you deserve
The fastest, most durable and powerful handheld computer available today
COMPLETELY RUGGEDIZED
IP67 water & dust resistant; magnesium housing – a full metal jacket!
MORE MEMORY
Up to 1 gigabyte with option to expand
COMPACT/CONVENIENT CONNECTIONS
2 styles of USB connections located on top for convenience
EASY TO HOLD/CONTROL
Just 2 pounds! Keys’ size & location optimized for precise handling
BACK LIT CONTROL KEYS
Easily see when quick command keys are activated
LONGER BATTERY LIFE
8-10 hours standard with option to add second battery
Specifications;
| PROCESSOR | |
| Type: | PXA270 |
| Maximum Clock Speed: | 624 Mhz |
| Both include: | • Real Time Clock • Battery Warm Swapping Ability • Microphone • Speaker |
| DISPLAY | |
| Type: | TFT |
| Resolution (240x320 pixels): | QVGA |
| Color/Mono: | Color |
| Size: | 3.5” diagonal |
| Both also include: | • Backlight (LCD) • Touchscreen • Ability to disable Touchscreen from keyboard |
| OPERATING SYSTEM — WM 6.1 | |
| Languages: | English, Simplified Chinese, Portuguese, French, German, Spanish |
| Applications included: | All standard
WM6 applications (Word Mobile,
Excel Mobile, Outlook Mobile, etc.) |
| Bluetooth Audio: | A2DP supported |
| Speed Switch Utility: | Sets processor clock speed to conserve battery |
| INTERFACE (I/O CONNECTOR) | |
| RS-232 9 pin D: | Two DB-9 |
| Bluetooth: | 2.0 w EDR |
| 802.11 b/g: | Yes |
| USB Client: | Mini-B connector |
| USB Host: | Full-size USB connector |
| EXPANSION (Surveyor+ only) | |
| MicroSD Card Slot | |
| Expansion Packs for GPS, cell modem, Cirronet radio, Maxstream radio, Futaba radio | |
| KEYBOARD | |
| Type: | Elastomer |
| Navigation: | 9-way (9) navigation pad with center enter |
| Numeric Keys: | 0-9 (10) |
| Alpha Keys | A-Z (26) |
| Command/Modifier Keys: |
10 – Shift, Tab, Control, 2nd, Escape, Alt, Space, Backspace, Delete |
| Enter Key: |
Large, easy to use both right- and left-handed |
| Function Key: | Left Soft Function key loads SurvCE |
| Windows Key: | Displays the Start Menu |
| Backlit Control Keys: | Alt-Yellow, 2nd-Blue, Control-Green, Shift-Red |
| Notification: | One LED displays charging status and the second one can be programmed by the application software |
| Number of keys: | 52 |
| MEMORY | |
| RAM | 128 MB |
| Data Storage | 1 GB |
| Data Storage Expansion |
MicroDS Dmemory card behind 2nd
bartttery |
| BATTERY | |
| Battery Type: | Lilon |
| Battery Packs: | Come standard with one (1) battery pack; user can add a second battery pack |
| Battery Capacity: | 3900 mAH (7800 mAH capacity reached when using two battery packs) |
| Battery Life: | 8-10 hours standard (battery life is determined by the number of battery packs used, by the amount of time the backlight is on, the backlight brightness and the type of expansion pack installed) |
| ENVIRONMENTAL | |
| Operating Temperature: | -30°C to +60°C |
| Storage Temperature: | -30°C to +60°C |
| Humidity: | MIL-STD-810F (Designed to this standard) |
| Water Resistance: | IP67 |
| Shock Resistance: | MILSTD 810F (Designed to withstand 5-foot drop onto concrete) |
| Dust Resistance: |
IP67 |
| ENCLOSURE | |
| Dimensions: | 10.2” x 5” x 1.5” |
| Weight: | 2 lbs. |
